NG # 00455-HW-Fluke-018
MF # 4684050

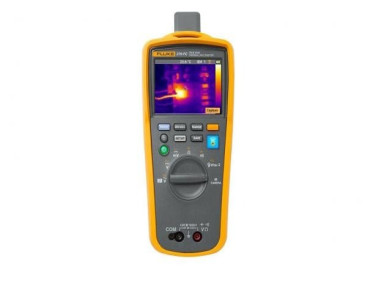

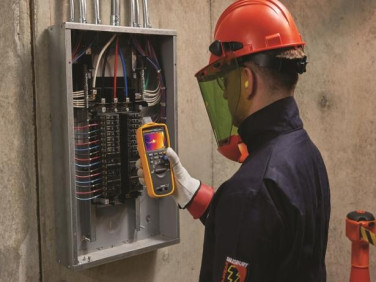

Thermal imaging multimeters are a first-line troubleshooting tool for electrical equipment that can check hot spots on high-voltage equipment and transformers, and detect heating of fuses, wires, insulators, connectors, splices and switches. .
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

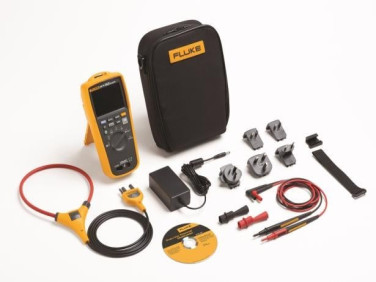

Get A QuoteCompatible with iFlex® (a flexible current clamp) to expand your measurement capabilities and get into tight, hard to reach spaces for current measurement (up to 2500 A AC). The large full-color LCD screen makes for easier and clearer viewing of images and readings. The 10 hour+ rechargeable battery keeps you going all day long under normal conditions.
Specification
| e/Resolution | 600.0/0.1 mV 6.000/0.001 V 60.00/0.01 V 600.0/0.1 V 1000/1 V |
| Accuracy | 45 to 65 Hz: 1.0 % + 3 65 to 200 Hz: 4.0% + 3 200 to 500 Hz: 15% + 3 |
| AC mV | |
| Range/Resolution | 600.0/0.1 mV |
| Accuracy | 45 to 500 Hz: 1.0% + 3 |
| DC Voltage | |
| Range/Resolution | 6.000/0.001 V 60.00/0.01 V 600.0/0.1 V 1000/1 V |
| Accuracy | 6, 60, 600 V: 0.09% + 2 1000 V: 0.15% + 2 |
| DC mV | |
| Range/Resolution | 600.0/0.1 mV |
| Continuity | |
| Range/Resolution | 600/1 Ω |
| Accuracy | Meter beeps at <25 Ω, beeper detects opens or shorts of 600 µs or longer |
| Resistance | |
| Range/Resolution | 600.0/0.1 Ω 6.000/0.001 kΩ 60.00/0.01 kΩ 600.0/0.1 kΩ 6.000/0.001 MΩ 50.00/0.01 MΩ |
| Accuracy | 600 Ω: 0.5 % + 2 6 to 600 kΩ: 0.5 % + 1 50 MΩ: 1.5 % + 3 |
| Diode Test | |
| Range/Resolution | 2.000/0.001 V |
| Accuracy | 1% + 2 |
| Capacitance | |
| Range/Resolution | 1000/1 nF 10.00/0.01 µF 100.0/0.1 µF 9999/1 µF |
| Accuracy | 1000 nF to 100 µF: 1.2% + 2 9999 µF: 10% typical |
| AC Current | |
| Range/Resolution | 999.9/0.1 A 2500/1 A (with iFlex) |
| Accuracy | 45 to 500 Hz: 3.0% + 5 |
| Frequency | |
| Range/Resolution | 99.99/0.01 Hz 999.9/0.1 Hz |
| Accuracy | 0.1% + 1 |
| Input Characteristics | |
| AC Voltage | Input impedance (nominal): >10 MΩ <100 pF Common mode rejection ratio (1 kΩ unbalance): >60 dB, DC to 60 Hz Overload protection: 1100 V rms |
| DC Voltage | Input impedance (nominal): >10 MΩ <100 pF Common mode rejection ratio (1 kΩ unbalance): >120 dB at DC, 50 Hz or 60 Hz Normal mode rejection: >60 dB at 50 Hz or 60 Hz Overload protection: 1100 V rms |
| AC mV/DC mV | Input impedance (nominal): >10 MΩ <100 pF Common mode rejection ratio (1 kΩ unbalance): >120 dB at DC, 50 Hz or 60 Hz Normal mode rejection: >60 dB at 50 Hz or 60 Hz Overload protection: 1100 V rms |
| Resistance/Capacitance | Open circuit test voltage: <2.7 V dc Full scale voltage to 6 MΩ: <0.7 V dc Full scale voltage 50 MΩ: <0.9 V dc Typical short circuit current: <350 mA Overload protection: 1100 V rms |
| Continuity/Diode Test | Open circuit test voltage: <2.7 V dc Full scale voltage: 2.000 V dc Typical short circuit current: <1.1 mA |
| MIN/MAX Recording Accuracy | |
| AC Functions | 40 counts for changes > 900 ms in duration |
| DC Functions | 12 counts for changes > 350 ms in duration |
| Infrared Camera Temperature | |
| Temperature Range | 14 to 392°F (-10 to 200°C ) |
| Measurement Resolution | 0.1°C |
| Temperature Measurement | Yes, centerpoint |
| Accuracy | ±5 °C or ±5 %, whichever is greater, at 25 °C (ambient) for target temperatures below 20 °C, add 0.05 °C for each °C |
| Emissivity | 0.95 fixed |
| Image Performance | |
| Resolution | 102 x 77 |
| Image Capture Frequency | 8 Hz |
| Detector Type | Uncooled vanadium oxide |
| Thermal sensitivity (NETD) | ≤200 mK |
| Infrared Spectral Band | 7.5 to 14 µm |
| Distance to Spot | 162:1 |
| Field of View | 36 x 27° |
| Focus Mechanism | Fixed focus |
| Image Presentation | |
| Palette | Ironbow |
| Level and Span | Auto |
| Image Capture and Data Storage | |
| Image Capture | Image available for review before a save |
| Storage Medium | Internal memory stores up to 100 images |
| Image Transfer | Fluke Connect®/SmartView® |
| File Format | is2 |
| Display Size | 3.5" (8.9 cm) diagonal |
