NG # 00400-HW-IDENT-093

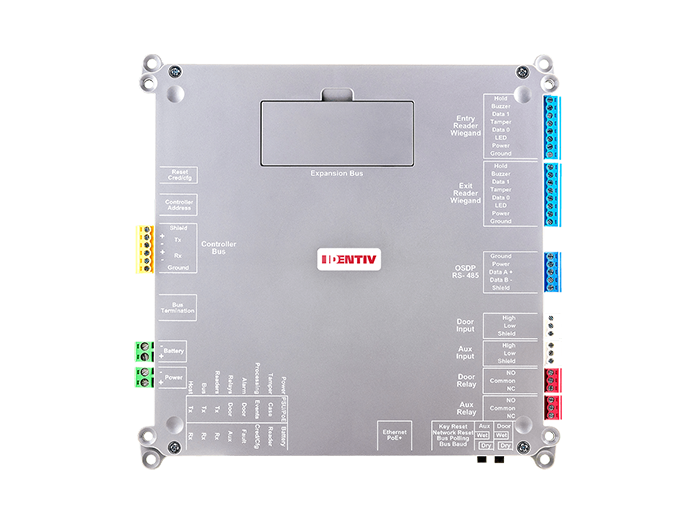

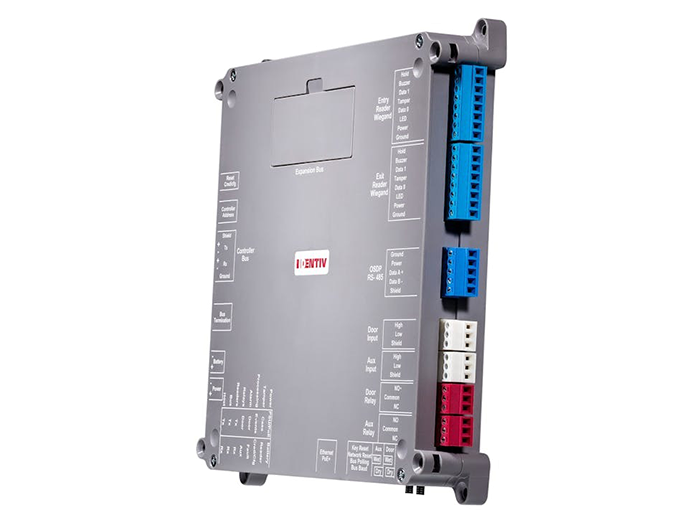

Power over Ethernet (PoE) edge Hirsch Mx-1 Controller manages a single fully supervised door for controlled entry and exit.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A Quotepower and features of Identiv’s Hirsch Mx, but you’re longing for a Power over Ethernet (PoE) edge controller, then get your hands on the Hirsch Mx-1.
Specification
| Serial Interface Ports | Controller to controller: • RS-485 multi-drop protocol (X*NET2, X*NET3) • Up to 4,000 ft (1,200 m) with 22 gauge, 2 pair, stranded, twisted, and shielded |
| OSDP Protoco | Controller to reader: • Buzzer, LED, and optional secure OSDP • Single port for entry and exit readers • Up to 4,000 ft (1,200 m) with 18 gauge, 2 pair, stranded, twisted, and shielded |
| Wiegand Protocol | Onboard Wiegand: • Industry standard Wiegand • Reader ports: 2 (1 entry port and 1 exit port) • Maximum wiring run: 500 ft (150 m) with 18 gauge, 2 pair, stranded, twisted, overall shield |
| Command and Control Module (CCMx) | • Flash upgradeable • Time zones: 150 • Door groups: 128 • Control zones: 256 • Holiday schedules: 4 (366 days x 2 years) • Daylight savings time adjustment |
| SNIB3 | • Flash upgradeable with signed and encrypted firmware • FIPS AES 256 encryption • TLS 1.2 Encryption (Requires Velocity 3.7 SP2 or later) • 10/100/1000 Ethernet (TCP/IPv4 or v6) |
| Buffers | Standard: 1,500 events and 1,500 alarms |
| Credentials | Up to 500,000 |
| Memory Protection Battery | 10 days for code, setups, clock, and buffers |
| Security | Cover opening tamper switch |
| Enclosure | Flame retardant plastic enclosure with exposed connectors and diagnostic LEDs |
| Dimensions | 1.25 x 8.0 x 8.0 in (3.18 x 20.32 x 20.32 cm) |
| Weight | 1.5 lbs (0.69 kg) |
| Operating Temperature Range | 32° to 140°F (0° to 60°C) |
| Relative Humidity | 0 to 90%, non-condensing |
