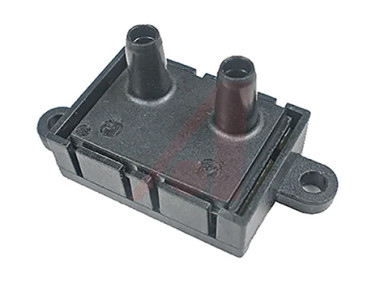

Honeywell HAF Series Amplified Airflow Sensor for Dry Gas, 0 sccm Min, 50 sccm Max

  • NG # 03095-HW-HONEYWELL-343

  • MF # HAFBLF0050CAAX5

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Honeywell Zephyr™ HAF Series sensors provide a digital interface for monitoring airflow over specified full-scale flow and compensated temperature ranges. The thermally isolated heater and temperature sensing elements help these sensors provide a fast response to air or gas flow.

Zephyr sensors are designed to measure the mass flow of air and other non-corrosive gases. Standard flow ranges are available at ±50, ±100, ±200, ±400 or ±750 sccm. Custom flow ranges are also available. The sensors are fully calibrated and temperature-compensated with an onboard Application Specific Integrated Circuit (ASIC).

The HAF Series is compensated over the temperature range of 0°C to 50°C and operates across a temperature range of -20°C to 70°C. The state-of-the-art ASIC-based compensation provides digital (I2C) outputs with a response time of 1 ms.

These sensors operate on the heat transfer principle to measure mass airflow. They consist of a microbridge Microelectronic and Microelectromechanical System (MEMS) with temperature-sensitive resistors deposited with thin films of platinum and silicon nitride. The MEMS sensing die is located in a precise and carefully designed airflow channel to provide a repeatable response to flow.

Zephyr sensors provide the customer with enhanced reliability, high accuracy, repeatable measurements, and the ability to customize sensor options to meet many specific application needs. The combination of rugged housings with a stable substrate makes these products robust. They are designed and manufactured according to ISO 9001 standards.


Features and Benefits


• Total error band as low as ±0.25%

• Fast response time

• Wide range of airflows

• Customisable flow ranges

• High sensitivity when the flow is low

• Linear output provides a more intuitive sensor signal

• High stability reduces errors due to thermal effects

• Low-pressure drop typically improves patient comfort in medical applications


Product Application Information


MEDICAL

• Anaesthesia delivery machines

• Ventricular assist devices (heart pumps)

• Hospital diagnostics (spectrometry, gas chromatography)

• Nebulisers

• Oxygen concentrators

• Patient monitoring systems (respiratory monitoring)

• Sleep apnea machines

• Spirometers

• Ventilators

• Laparoscopy

INDUSTRIAL

• Air-to-fuel ratio

• Analytical instrumentation (spectrometry, chromatography)

• Fuel cells

• Gas leak detection

• VAV system on HVAC systems

• Gas meters

• HVAC filters


Honeywell Amplified Airflow Sensor, Dry Gas, 5V DC - HAF Series - HAFBLF0050CAAX5


Looking for a reliable high-response device for measuring the flow of air or other gas media? This amplified airflow sensor from Honeywell is designed with innovative Zephyr technology to provide highly accurate readings for the mass flow of air and other non-corrosive gases. It's equipped with an advanced ASIC (application-specific integrated circuit) chip that produces a digital output at a response speed of 1 ms. The sensor's compact nature means it takes up very little room on your PCB (printed circuit board), so you can use it in applications where space is limited. Its external housing is made from a high-quality polymer material that maintains resistance to chemicals and corrosion even under increased temperatures.


Features & Benefits


• Operating temperature range between -20°C and +70°C to cope with extreme conditions
• Low-pressure drop reduces noise
• High stability improves overall performance and reduces errors from thermal effects
• Tubing connection style for easy integration


Applications


• HVAC (heating, ventilation, and air conditioning) filters
• Patient monitoring systems


How long can this digital airflow sensor last?


With regular maintenance, this airflow sensor will offer a long service life. The outer polymer material protects the component from damage from external sources, making it durable and suitable for use in harsh environments.

Specification

Media MonitoredDry Gas
Device TypeAmplified
Minimum Flow Rate0 sccm
Maximum Flow Rate50 sccm
Supply Voltage5 V dc
Pipe Diameter RangeMaximum of 5.35 mm
Connection TypeTubing
Maximum Pressure25psi
MaterialHigh Temperature Polymer
Minimum Operating Temperature-20°C
SeriesHAF
Maximum Operating Temperature+70°C
Current Rating20 mA
