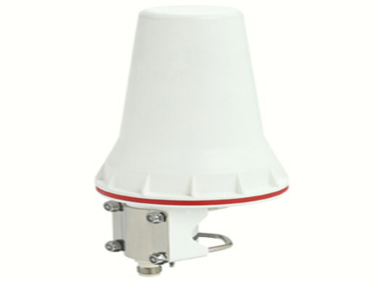

Iridium Fixed Mast Antenna - For Iridium satellite phones, terminals and docks

  • NG # 03223-HW-Iridium-022

  • MF # VIZ-FMAST

Manufactured By :
Iridium
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Iridium fixed mast antenna can be used with all types of Iridium satellite phones, terminals and docking stations to deliver exceptional reception performance for permanent in-building or marine applications. Hermetically sealed to withstand harsh natural or nautical environments.

Specification

1.       Diameter: 7.6 cm (3.0 inches)

2.       Height: 18.7 cm (7.4 inches)

3.       Weight: 311.85 grams (11 ounces)

4.       Operating Temperature: -40 C to +85 C

5.       Connector: TNC Female

6.       Impedance: 50 OHMS

7.       VSWR: <2.0:1

8.       Frequency: 1616—1626 MHz

9.       Polarization: Right hand circular

10.   Axial Ratio: 3 dB Max

11.   Altitude: 20,000 feet

12.   Finish: Weatherable Polymer White

13.   Power Handling: 1 Watt
