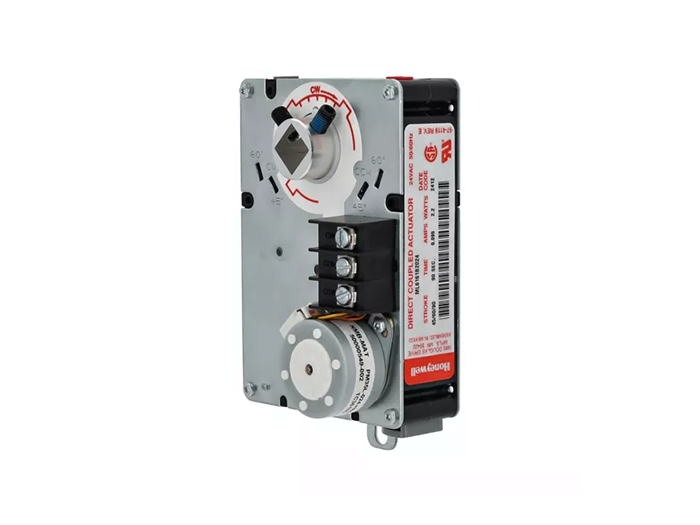

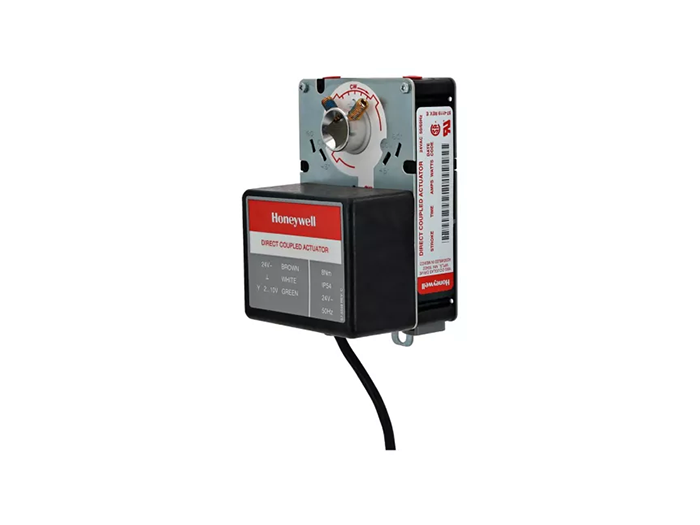

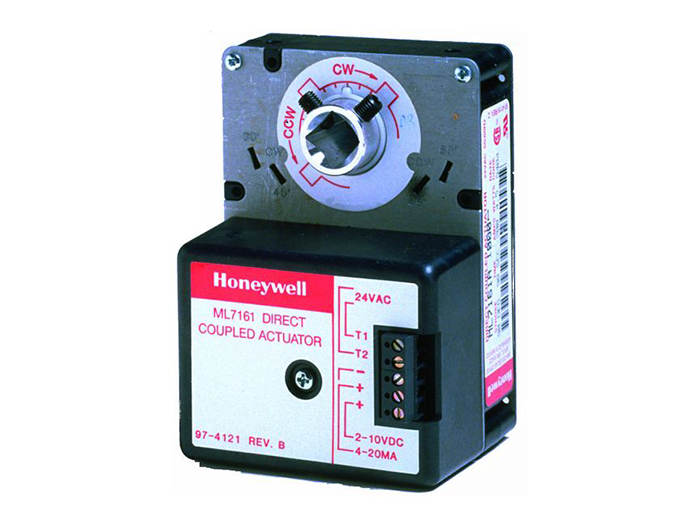

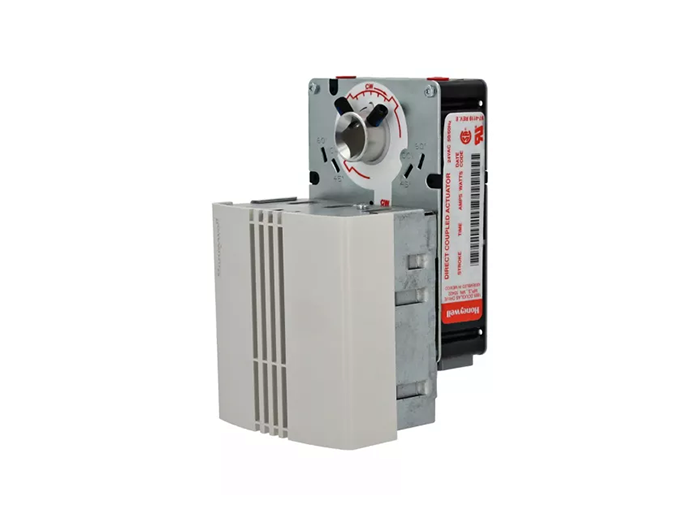

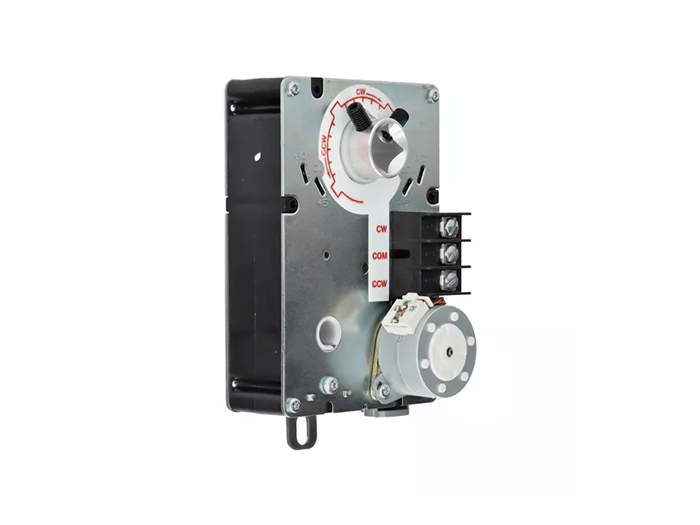

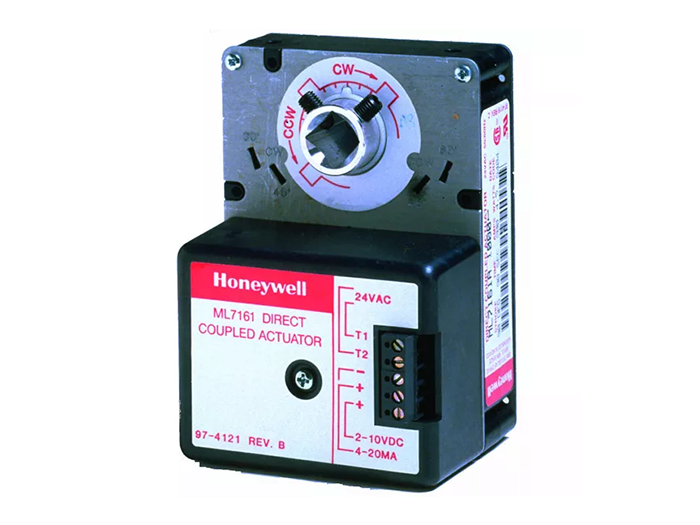

Honeywell ML6161/ML7174 Non-Spring Return Direct Coupled Actuator

  • NG # 00965-HW-HNWEL-085

ML6161/ML7174 Non-Spring Return Actuators are designed to control VAV terminal unit dampers or Honeywell ball valves.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

ML6161/ML7174 Non-Spring Return Direct Coupled Actuators (DCA) provide floating or proportioning control for valves and dampers. The proportioning actuators accept a current or voltage signal from a controller to position the damper or valve at any chosen point between fully open and fully closed

Specification

Specification

  • Selectable 45, 60, or 90° stroke in both clockwise (CW) or counter clockwise (CCW) directions
  • 0 to 30° minimum position adjustment (CW or CCW direction) on all models
  • Magnetic coupling eliminates the need for mechanical stops
  • Two field-addable auxiliary switches
  • Auxiliary feedback potentiometer field-addable on select models
  • Manual declutch on all models
  • Standard reverse/direct acting rotation switch on outside cover
  • Superior A/C synchronous sub motor for consistent timing and long life
