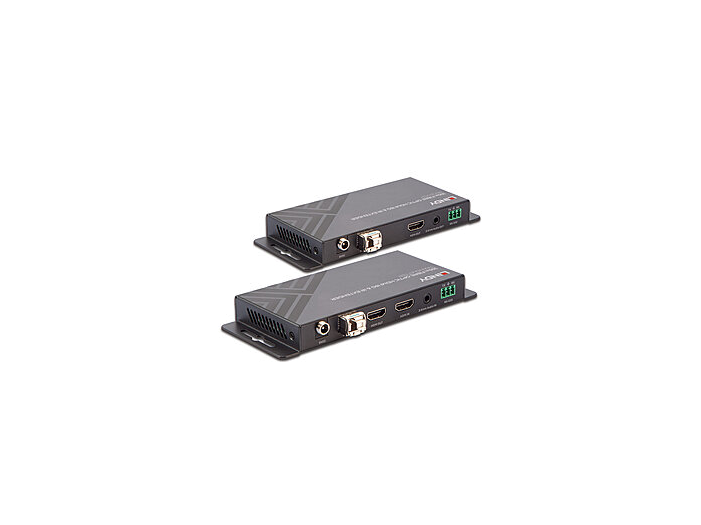

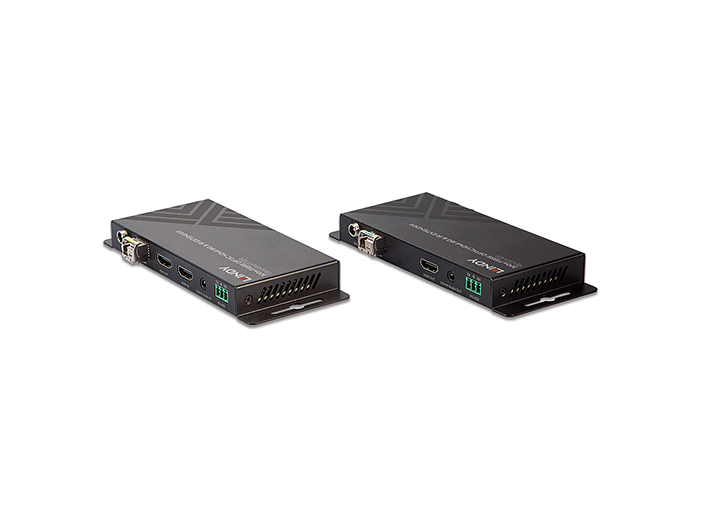

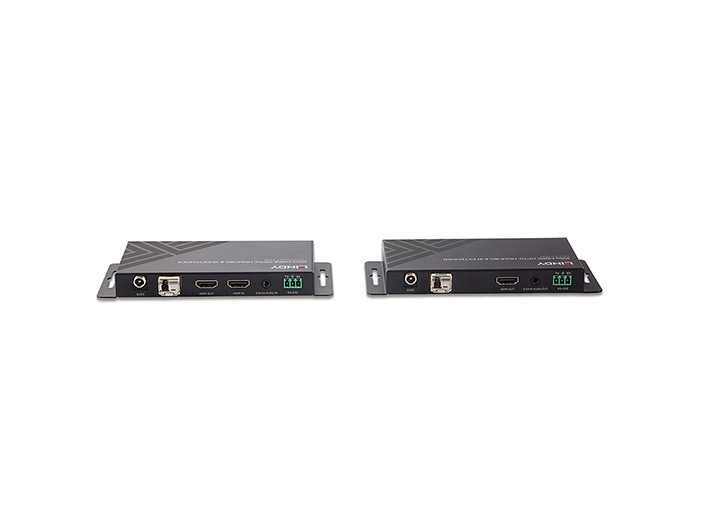

Lindy 300m/1000m Fibre Optic HDMI 4K60, IR, RS232 & Audio Extender

  • 00100-HW-LIN-055

  • 00100-HW-LIN-055

  • 00155-HW-LIN-055

Effortlessly extend HDMI 2.0 18G signals over extended distances — up to 300m using a simplex LC multimode cable or an impressive 1000m with a simplex LC singlemode cable. Enjoy resolutions up to 4K 60Hz Ultra HD, inclusive of High Dynamic Range. This system supports bi-directional IR or RS-232 for seamless control and ensures maximum compatibility with HDCP 2.2.

Manufactured by:

Lindy

Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote

Overview

The Lindy 300m/1000m Fibre Optic HDMI & IR Extender is a high performance solution for extending 4K 60Hz Ultra HD transmissions over incredible distances, which are not possible with traditional copper based systems, using a single standard LC simplex fibre optic cable. Support for the HDMI 2.0 specification allows for the transmission of highly detailed 4K Ultra HD resolutions, using smart methods of compression, which decompresses the signal at the receiver for a visually lossless picture. Also providing support for High-Dynamic Range, video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for creating eye-catching digital signage in retail, impressive residential installations or taking sports venue distribution to new immersive levels. HDCP 2.2 compatibility also means that protected 4K content including movies and TV shows can be viewed without issue.

Specification

Specification

AV Interface:
HDMI
Interface Standard
HDMI 2.0
Supported Bandwidth
18Gbps
Maximum Distance
300m (984.24ft) (Multimode 50/125µm fiber), 1000m (3280.2ft) (Singlemode 9/125µm fiber)
Maximum Resolution
3840x2160@60Hz 4:4:4 8bit
HDCP Support
Pass-through
EDID Pass Through
Pass-through
Supported Audio
Pass-through
Separate Audio Ports
3.5mm
IR Support
20KHz – 60KHz
Serial Interface
RS-232 (Bi-directional)
Transmission Medium
1 x Simplex LC
Wavelength (only for Fibre)
1310 and 1550nm (with supplied SFP+ module)
Chipset
SD1503/SD1513
Special Features
Auto Laser Disabling Function
Transmitter Input
HDMI Type A (Female), 3.5mm Audio (Female)
Transmitter Output:
Simplex LC, HDMI Type A (Female)
Receiver Input
simplex c
Receiver Ouput
HDMI Type A (Female), 3.5mm Audio (Female)
Bidirectonal Ports
RS232 (Terminal Blocks), IR (Female)
Power
5.5/2.5mm DC Socket
Dimensions (approx.) WxDxH
100x65x25.6mm (3.94x2.56x1.01in)
Housing Material
Metal
Net Weight
0.516kg (1.14lb)
Operating Temperature
0°C - 40°C (32°F - 104°F)
Storage Temperature
-20°C - 60°C (-4°F - 140°F)
Humidity
20 - 90% RH (non-condensing)
Power Requirements
5VDC 1A
Colour
Black
