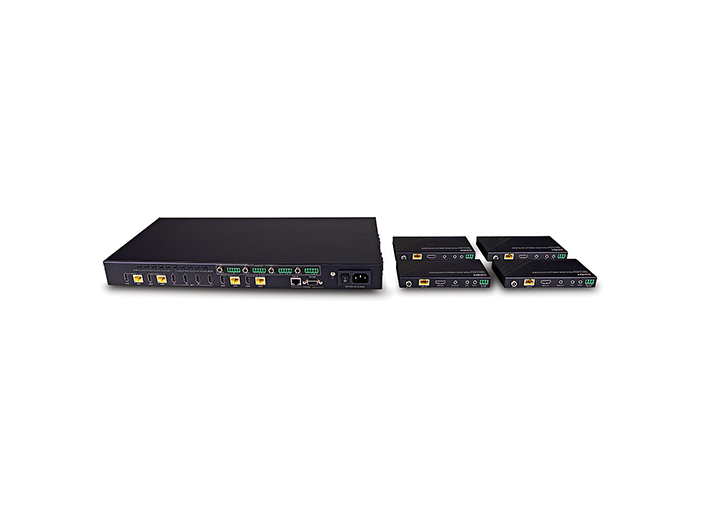

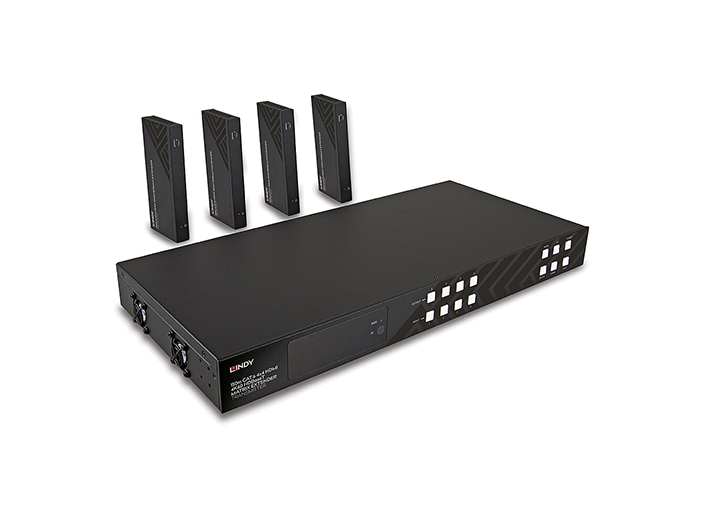

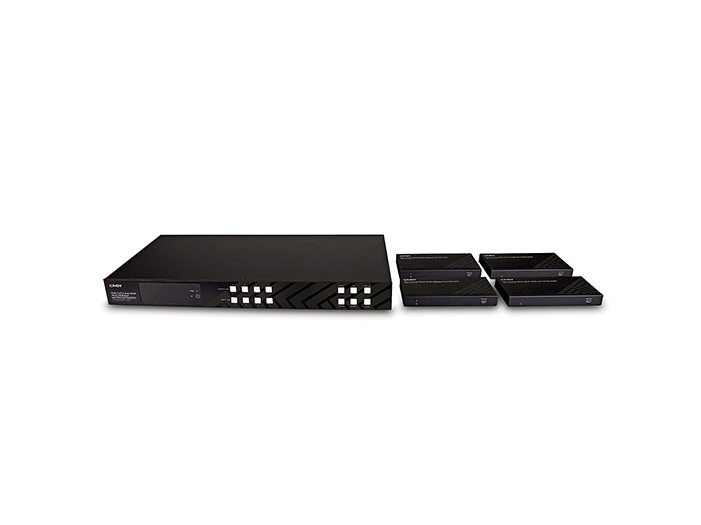

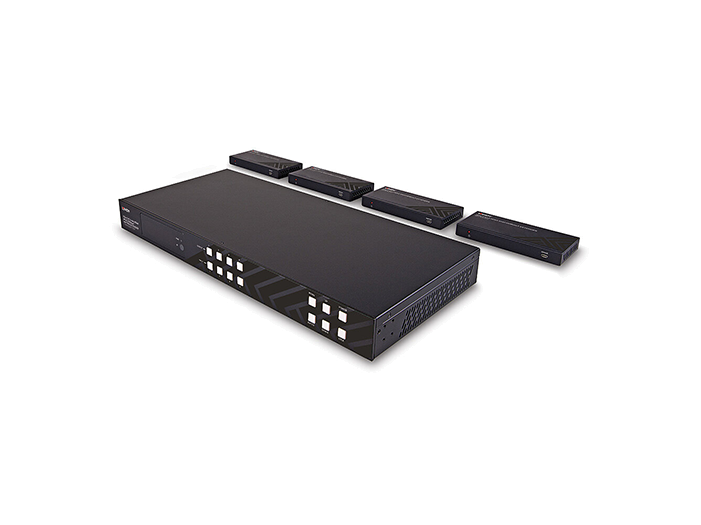

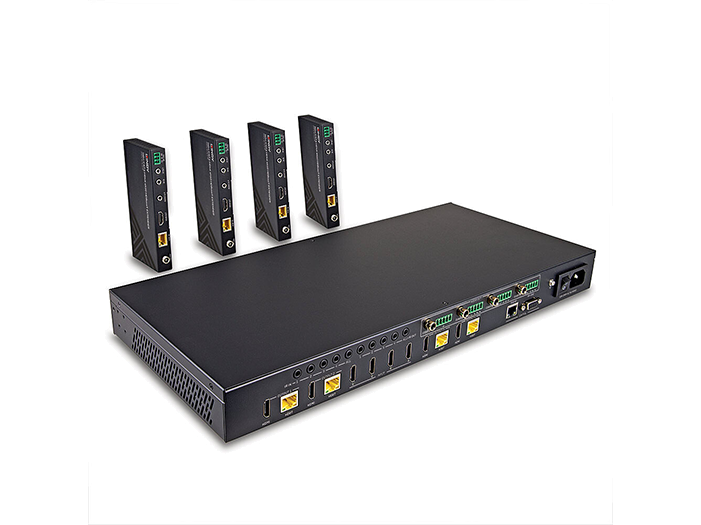

Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender

  • 02334-HW-LIndy-011

  • 02334-HW-LIndy-011

  • 02334-HW-LIndy-011

The Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender is an high-end and complete solution to switch and extend 4 HDMI signals to 4 HDBaseT receivers using Cat.6 or above cables up to 150m.

Manufactured by:

Lindy

Need Help Ordering?
Call +88 01714243446

Stock
Stock Out

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
Stock Out

Custom Pricing

Get A Quote

Overview

Supporting resolutions up to 4K60Hz including HDR and 1080p, the Matrix Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.

It supports several signals and features such as analog and coax de-embedded audio, IR matrix function and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out ports enables simultaneous viewing so that a local display can be connected for monitoring each HDBaseT output, or to create additional viewing zones.

PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver, meaning only the transmitter unit needs to be powered on.

Specification

  • AV Interface: HDMI
  • Interfaces Standard: HDMI 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Distance:
    120m (393.7ft) - 3840x2160@60Hz 4:4:4 8bit
    150m (492.12ft) - 1920x1080@60Hz
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • EDID Pass Through: Presets, Cloning
  • Supported Audio:
    HDMI Audio Pass-through
    Digital Audio up to 5.1Ch
    Analog Audio up to 2.0Ch
  • Separate Audio Ports: Coax and balanced analog
  • IR Support: 20 - 60KHz
  • Serial Interface: RS-232
  • Transmission Protocol: HDBaseT
  • Transmission Medium: 4 x Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Special Features: PoC (Power over Cable), HDMI Loop Out ports, 4K to 1080p downscaler

Connectors

  • Transmitter Input: 4 x HDMI (Female), 5 x 3.5mm IR (Female)
  • Transmitter Output: 4 x HDMI (Female), 4 x Coax RCA (Female), 4 x L/R Audio 5-pin phoenix, 5 x 3.5mm IR (Female), 4 x RJ45 HDBaseT (Female)
  • Transmitter Bidirectonal Ports: RS-232 9 pin (Female), RJ45 (Female)
  • Transmitter Power: IEC C14
  • Receiver Input: 3.5mm IR (Female), RJ45 HDBaseT (Female)
  • Receiver Output: HDMI (Female), 3.5mm Audio (Female), 3.5mm IR (Female)
  • Receiver Bidirectonal Ports: RS-232 3 pin phoenix
  • Receiver Power: 5.5/2.1mm

Physical Properties

  • Dimensions:
    Matrix: 440x200x45mm (17.32x7.87x1.77in)
    Receivers: 140x65x18mm (5.51x2.56x0.71in)
  • Housing Material: Metal
  • Net Weight: 5.31Kg (11.71lb)
  • Operating Temperature: 0°C- 40°C (32°F - 104°F)
  • Storage Temperature: -20°C- 60°C (-4°F - 140°F)
  • Humidity: 20- 90% RH (Non-condensing)
  • Power Requirements: 60W
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 510x401x98mm (20.08x15.79x3.86in)
  • Gross Weight: 6.33kg (13.96lb)
  • Warranty: 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • 4x4 HDBaseT Extender Matrix - Transmitter
  • 4 x HDBaseT Receivers
  • 5 x IR Emitter Cable, 1.5m
  • 5 x IR Receiver Cable, 1.5m
  • 10 x Mounting Ears & Screws
  • 4 x 3-Pin Terminal Block
  • 4 x 5-Pin Terminal Block
  • RS-232 Male to Female cable, 1.5m
  • 4 x mains cables (EU, UK, US & AUS), 1.5m
  • Lindy Manual

Purchasing Information

  • No.: 38345
  • EAN: 4002888383455
