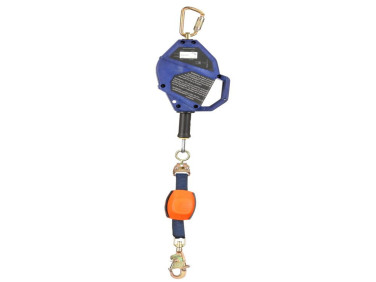

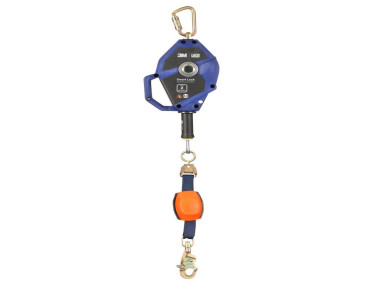

3M DBI-SALA 3503850 Smart Lock 20 ft. Leading Edge Modular Connector Self-Retracting Lifeline, Galvanized Cable, ANSI Class 2

  • NG # 0763-HW-3M-017

  • MF # 3503850

Manufactured By :
3M
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

ANSI Class 2 certified to the new ANSI/ASSP Z359.14-2021 standard, the 3M™ DBI-SALA® Smart Lock Edge is a revolutionary SRL that detects differences between a fall and normal work motion. This Smart Lock Edge 3503850 SRL has a galvanized cable lifeline that extends to a length of 20 feet (6 m). From decreasing lockups to simplifying inspections, the new Smart Lock SRL ensures safety and convenience when working at height.

Using advanced motion capture technology, we studied the forces applied to the SRL during typical at-height tasks. This data helped us engineer a new arrest mechanism that can more easily detect the difference between a fall and normal work motion, tailoring a SRL for your work application.

Specification

  • ANSI Class 2 (For use with anchorages AT, ABOVE, or BELOW the dorsal D-ring)
  • Rugged and lightweight thermoplastic housing with built in ergonomic handle
  • 20 ft. (6m) of 7/32" (5.5mm) galvanized steel cable lifeline
  • Using advanced motion capture, horizontal use is designed to help reduce nuisance lockups when compared to our previous generation SRLs
  • Highly-visible orange Leading Edge external energy absorber indicates the product is designed for sharp edge applications
  • Patent pending magnetic retraction control system allows lifeline retract smoothly, hands free
  • Swiveling anchorage point and carabiner included
  • Patent pending dual label system located within ergonomic cable handle to simplify inspections and reduce the need for replacement
  • Swiveling snap hook with impact indicator
  • Connected Safety RFID located in cable handle
  • Standards/Approvals: ANSI/ASSP Z359.14-2021 OSHA 1926.502 & OSHA 1910.140
  • Overall Dimensions: 31.5 x 9" x 4"
  • Weight Capacity 130 lbs. - 310 lbs.
  • Maximum Arrest Force: 1500 lbs.
  • Average Arrest Force: 1125 lbs.

Other 3M Products

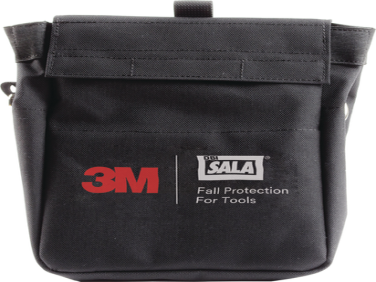

3M Python Safety Tool Pouch with D-Ring and Two Retractors, Mfg# 1500125
3M Safety & Security 0823-HW-3M-077

3M™ DBI-SALA® 3103872 Nano-Lok™ Extended Length 20ft SRL, Dyneema™ with Aluminum Carabiner
3M Safety & Security 0792-HW-3M-046 3103872

3M DBI-SALA 2104709 Strut Anchor, 420 lbs. Capacity, Fits 1-5/8" Wide Strut
3M Safety & Security 0793-HW-3M-047

3M DBI-SALA Nano-Lok Connected Order Picker SRL System, SKU 3100273
3M Safety & Security 0855-HW-3M-110

3M DBI Sala ExoFit NEX™ Comfort Arc Flash Climbing/Positioning Safety Harness
3M Safety & Security 0768-HW-3M-022

3M DBI SALA Ultra-Lok® SRL, 20ft. Galv. Cable, Thermoplastic Housing | Mfg#3504433
3M Safety & Security 0852-HW-3M-107

DBI Sala EZ-STOP Leading Edge Cable Shock Absorbing Lanyard, Mfg# 1246261, 6 ft. (1.8m) Cable Single-Leg With Snap Hook At One End, Steel Rebar Hook At Other End
3M Safety & Security 0815-HW-3M-069 1246261

3M DBI Sala Hook2Hook Coil Tether (10 Pack), Tool lanyard, coil tether with swivel, 5 lb. (2.3 kg) capacity, single leg with self-locking carabiner hooks at both ends, Mfg# 1500160
3M Safety & Security 0826-HW-3M-080 1500160

3M DBI-SALA® Rollgliss™ R350 Rescue and Positioning Device, 100 ft., 3:1 Ratio, Mfg # 8902006
3M Safety & Security 0775-HW-3M-029 8902006

Python Safety Clip2Clip Coil Tether (10 Pack) Mfg# 1500059
3M Safety & Security 0828-HW-3M-082 1500059

3M DBI Sala Confined Space Stainless Steel Center Mount Sleeve Davit Base, Part# 8516563
3M Safety & Security 0787-HW-3M-041 8516563

3M DBI-SALA Safe Bucket, 100 lb. Load Rated, Drawstring, Heavy Duty Canvas Material
3M Safety & Security 0768-HW-3M-022 1500133

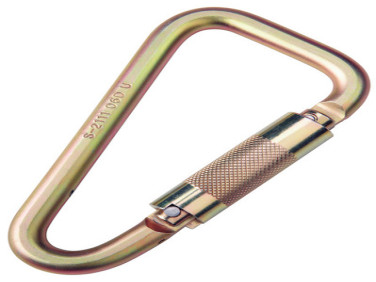

3M DBI Sala Saflok™ Steel Carabiner, 1-3/16 inch (30mm) Gate Opening, 3600 lb. Self Close/locking Gate, Mfg# 2000113
