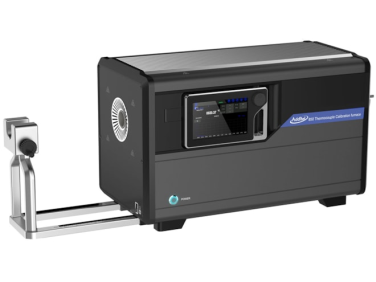

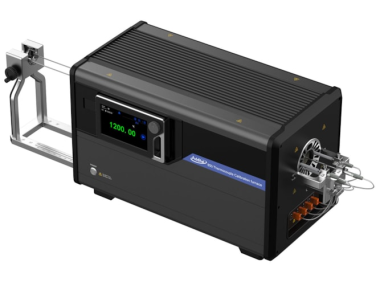

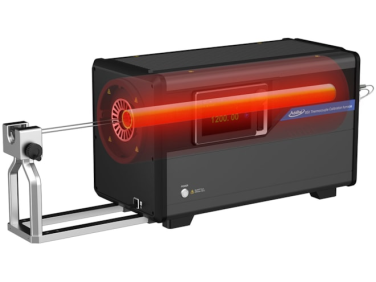

Additel ADT850 Laboratory Thermocouple Calibration Furnace

  • NG # 02887-HW-ADDITEL-027

  • MF # ADT850

Multi-purpose furnace with 9 unique modes, optimized settings for calibration and annealing support for a variety of thermocouple types and lengths.

Manufactured By :
Additel
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Thermocouple calibration work can be challenging. Here at Additel, we understand the difficulties of this type of work. Traditional furnace designs require several individual devices to meet industry standards for various calibration applications. To address this costly reality, Additel has created a multi-purpose furnace to help save time, money and space in your calibration facility. Our new ADT850 Laboratory Thermocouple Calibration Furnace is like having three separate furnaces is one. Users can select optimized settings for shorter probes, longer probes and even annealing purposes. The ADT850 horizontal furnace can be used in (9) different modes/configurations to help meet even the most challenging calibration requirements and standards. Additel’s 850 furnace is packed with many additional features and a performance you will not find anywhere else. The ADT850 is commonly used in a multitude of industries such as energy, calibration laboratories, aerospace and metallurgy to name a few. It is generally used by primary and secondary calibration laboratories to calibrate various length noble and base metal thermocouples with the lowest possible uncertainties. Additel’s ADT850 is the most stable and versatile furnace available!

Specification

  • Multi-zone temperature control
  • Quick cool technology
  • 572 to 2192°F (300 to 1200°C) temperature range
  • ±0.18°F (±0.1°C) stability
  • ±0.36°F at 2192°F (±0.2°C at 1200°C) radial uniformity
  • ±0.36°F at 2192°F (±0.2°C at 1200°C) axial uniformity
  • 40-minute heating time (74 to 2192°F, empty well)
  • 90-minute cooling time (2192 to 572°F, empty well)
  • Operating conditions:
    32 to 122°F, 0-90% RH
    non-condensing, <6,560 ft (2000 m) altitude
  • 7-inch pivoting color touchscreen display
  • Wi-Fi, Bluetooth, USB, LAN
