NG # 00100-HW-KEY-002
The Flapper Valves F/Dual Flapper Check Valves are manufactured for today’s increasingly harsh drilling environment. All cages, flappers, & caps may be made from 17-4 bar stock to address the corrosive effects of hydrogen sulfide gas (H2S)
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteKeystone's float valves are precision manufactured from high-grade materials and perform optimally in drilling environments. We offer valves for all drilling applications. Keystone provides Certified, Pressure-Tested float valves. As a leading manufacturer of float valves, we know the severity of drilling with a reliable and trusted float valve; therefore, we offer certified float valves that are serialized. Additionally, we will provide certification of high-and-low pressure tests upon request.
| Size | Weight (lbs) | O.D | I.D | Length Ea. | Stacked Length | Sub I.D/B | Sub I.D/A |
| 1’’ | 1.00 | .990’’ | .560’’ | 2.993’’ | 5.861’’ | 1.000’’ | 5.886’’ |
| 1 5/16’’ | 1.10 | 1.305’’ | .688’ | 2.375’’ | 4.625’’ | 1.313’’ | 4.650’’ |
| 1 1/2’’ | 1.22 | 1.490’’ | .810’’ | 2.720’’ | 5.380’’ | 1.500’’ | 5.405’’ |
| 1 11/16’ | 1.45 | 1.680’’ | 1.020’’ | 2.720’’ | 5.380’’ | 1.688’’ | 5.405’ |
| 1 7/8’’ /1F-2R | 1.6 | 1.900’’ | 1.000’’ | 3.940’’ | 7.880’’ | 1.910’’ | 7.905’ |

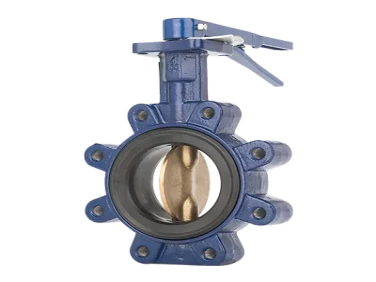

Keystone Series GR Butterfly Valve with Manual Actuator

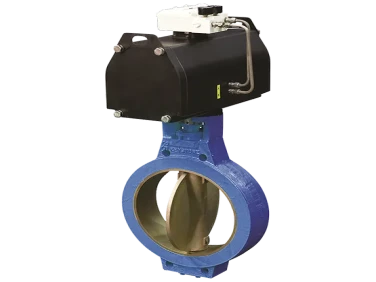

Keystone Series GR Butterfly Valve with Powered Actuator
Keystone Pipe Handling Tools Beckets & Bails
Keystone Figure 129/139 Butterfly Valve with Powered Actuator
Keystone Figure 221/222 Butterfly Valve with Powered Actuator

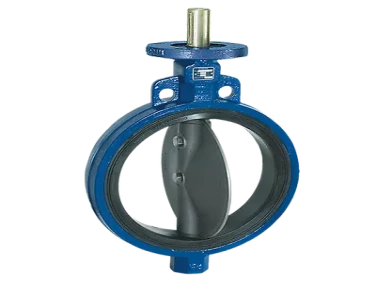

Keystone Optiseal Resilient Seated Butterfly Valve with Powered Actuator

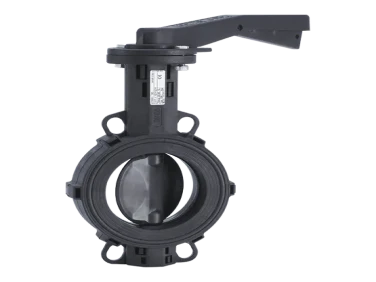

Keystone CompoSeal Resilient Seated Butterfly Valve with Manual Actuator

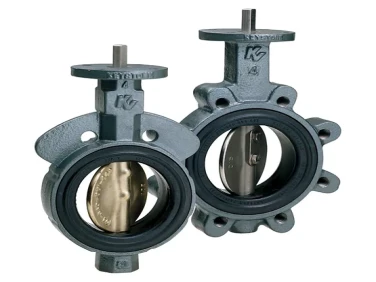

Keystone Model OptiSeal F14F17 Butterfly Valves
Keystone Series V30/V32 High Performance Butterfly Valves

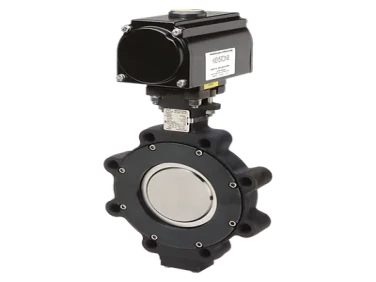

Keystone K-LOK® Series 36/37 High Performance Butterfly Valve with Powered Actuator

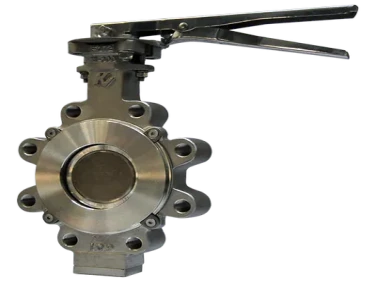

Keystone Series HiLok High Performance Butterfly Valves
