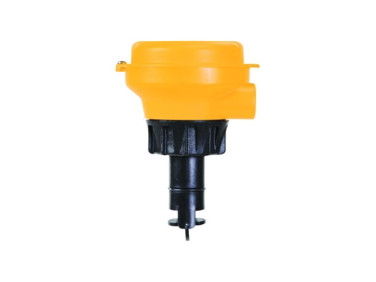

GF Signet 2537 Paddlewheel Flow Meter

  • NG # 0722-HW-GFS-002

  • MF # 3-2537-6C-P0

Highly versatile flow meter designed for low flow applications, achieving rates as minimal as 0.3ft/s. Offers a selection of output options and can be easily installed in pipes ranging from 0.5 to 8 inches in diameter.

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The GF Signet 2537 paddlewheel flow meter is the next generation in fluid measurement technology from the inventor of the original paddlewheel flow meter. The 2537 flow meter is an improvement on the industry standard. It has the added functionality of various output options including a flow switch, multi-functional pulse divider, digital (S³L), or 4 to 20mA. Additionally, the GF Signet 2537 paddlewheel flow meter offers low flow, low power, and high resolution and can be configured onsite directly through the built-in user interface.

Installation is simple because the GF Signet 2537 paddlewheel flow meter utilizes the same fittings as the popular GF Signet 515 and 2536 paddlewheel sensors and fits into pipe sizes ranging from DN15 to DN200 (0.5 to 8 inches). Available in Polypropylene and PVDF, the GF Signet 2537 paddlewheel flow meter is ideal for a variety of applications including chemical processing, water, and wastewater monitoring scrubber control.

GF Signet 2537 Paddlewheel Flow Meter Applications:
Process flow monitoring
Pump protection
Pure water production
Filtration systems
Chemical production
Reverse osmosis
Demineralization/regeneration
Fume scrubbers
Cooling towers
Proportional metering pump

Specification

DN15 to DN200 (0.5 to 8in) pipe sizesLow flow capabilities down to 0.3ft/s (0.1m/s)Output options
  • Digital (S³L)
  • 4-20mA
  • Pulse divider/flow switch, dry contact relay
  • Pulse divider/flow switch, solid state relay
Polypropylene or PVDF wetted materialsA built-in user interface for on-site configurationLow power and high resolutionAllows for up to six sensors to Signet 8900 controllerCE, FCC & UL approvals
