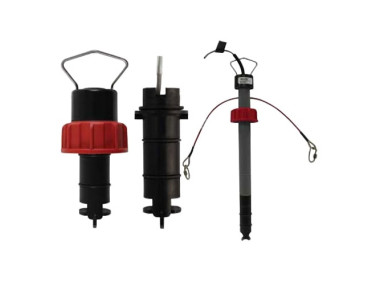

GF Signet 515 Rotor-X Paddle Wheel Flow Sensor

  • NG # 0721-HW-GFS-001

  • MF # P51530-P0

Rotor-X flow sensors, incorporating a paddle wheel, provide a sinusoidal frequency output.

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Simple to install with time-honored reliable performance, the GF Signet 515 Rotor-X paddle wheel flow sensors are highly repeatable and rugged sensors that offer exceptional value with little or no maintenance. The output signal of the GF Signet 515 Rotor-X paddle wheel flow sensor is a sinusoidal frequency capable of driving a self-powered flow monitor such as the GF Signet 8150 Flow Totalizer.

The GF Signet 515 Rotor-X paddle wheel flow sensors have a wide dynamic flow range of 0.3 to 6m/s (1 to 20 ft/s), which allows the sensor to measure liquid flow rates in full pipes and can be used in low pressure systems.

The GF Signet 515 Rotor-X paddle wheel flow sensors are offered in a variety of materials for a wide range of pipe sizes and insertion configurations. The many material choices include PP, PVDF, and Tefzel make this model highly versatile and chemically compatible to many liquid process solutions. GF Signet 515 Rotor-X paddle wheel flow sensors can be installed in up to DN900 (36 in.) pipes using GF Signet's comprehensive line of custom fittings. These custom fittings, which include tees, saddles, and weldolets, set the sensor to the proper insertion depth into the process flow. GF Signet 515 Rotor-X paddle wheel flow sensors are also offered in configurations for wet-tap installation requirements.

Applications for the GF Signet 515 Rotor-X Paddle Wheel Flow Sensor:
Filtration Systems
Pure Water Production
Chemical Production
Liquid Delivery Systems
Pump Protection
Scrubber Systems
Water Monitoring
Not suitable for gases

Specification

  • Flow rate range 0.3 to 6 m/s (1 to 20 ft/s)
  • Wide turndown ratio of 20:1
  • Highly repeatable output
  • Simple, economical design
  • Installs into pipe sizes DN15 to DN900 (0.5 to 36 in.)
  • Self-powered
  • 7.6m (25 ft.) cable for Standard and Wet-Tap sensors
  • Chemically resistant materials
  • Easy to replace a rotor
  • CE Approved
