NG # 0850-HW-3M-105
MF # 1202794

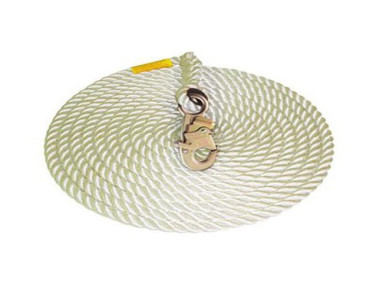

The 3M™ DBI-SALA® Rope Lifeline 1202794 is a durable 50 ft. (15.24 m) vertical lifeline designed to provide a reliable connection point for personal fall protection and restraint applications. It features a 5/8-inch (16 mm) polyester/polypropylene blend rope, offering strength and enhanced resistance to abrasion and UV exposure. The assembly includes a built-in self-locking snap hook at one end for secure attachment to a suitable anchorage, while the opposite end is taped for added protection.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe lifeline is intended for temporary installation and one user, with a listed weight capacity of 310 lb. (141 kg). It can be used in applications such as construction, maintenance, inspection, utilities, industrial work, oil and gas, mining, and other environments where vertical fall protection is required.
The rope incorporates a durable 5-tuck splice and is designed as part of a compatible fall-protection system. It should be used according to 3M's instructions and applicable workplace safety requirements. The lifeline itself does not include a body harness or rope grab; compatible components must be selected separately as required by the application.
| Specification | Details |
|---|---|
| Brand | 3M™ DBI-SALA® |
| Product Type | Rope / Vertical Lifeline Assembly |
| Manufacturer Part No. | 1202794 |
| Lifeline Length | 50 ft. (15.24 m) |
| Rope Diameter | 5/8 in. (16 mm) |
| Rope Material | Polyester/Polypropylene Blend |
| Connection Type | Self-locking Snap Hook |
| Hook Location | One end |
| Opposite End | Taped |
| Maximum Users | 1 person |
| Weight Capacity | 310 lb. (141 kg) |
| Approx. Product Weight | 6.1 lb. |
| Installation Type | Temporary |
| Splice | High-strength 5-tuck splice |
| i-Safe™ | Equipped |
| Application | Vertical fall protection / restraint |
| Typical Industries | Construction, General Industry, Mining, Oil & Gas, Utilities, Transportation, Wind Energy |
| Standards | Listed by 3M as an industrial/occupational fall-protection product; applicable requirements must be verified for the specific installation |
