RFQ

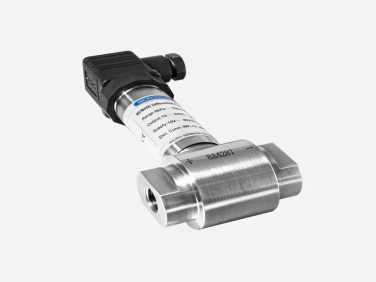

Differential Pressure Transmitter

  • NG # 04056-HW-microsensor-030

  • MF # MDM490

The MDM490 Differential Pressure Transmitter is an industrial-grade pressure measurement device designed to detect and transmit differential pressure of gases and liquids. It integrates a high‑precision piezoresistive differential pressure sensor with a stainless steel 316L isolation diaphragm, offering stable performance across a broad range of applications including petroleum, chemical processing, power generation, and hydrology. The transmitter supports multiple output signal formats and includes external adjustment for zero and span. The unit meets CE and RoHS certifications and is suitable for installation in various industrial environments.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MDM490 is a compact and rugged differential pressure transmitter optimized for accurate measurement of differential pressure in pipelines, cylinders, and tanks. It uses a diffused silicon piezoresistive sensing element with temperature compensation and aging screening to ensure reliable performance over time. Its all‑stainless steel sealed construction and laser welding provide durability and ease of installation. Suitable for a wide range of gas and liquid media, the MDM490 offers selectable electrical output options and operates effectively across typical industrial temperature conditions. It is certified to meet relevant safety and environmental standards, making it appropriate for general industrial and hazardous area applications.

Specification

Measurement

  • Differential pressure measurement for gases and liquids.
  • Measurement range options from 0 mbar ~ 350 mbar up to 35 bar.
  • Negative pressure measurement not allowed; positive overpressure capacity up to 2× full scale.

Performance

  • Accuracy: ±0.5% of full scale.
  • Maximum static pressure: ≤200 bar.
  • Operating temperature range: -30℃ to 80℃.

Sensor and Construction

  • Diffused silicon piezoresistive differential pressure sensor.
  • Stainless steel 316L isolation diaphragm.
  • All stainless steel sealed structure with laser welding.

Electrical

  • Output signal options:
    • 4 mA ~ 20 mA DC
    • 0 mA ~ 10/20 mA DC
    • 0/1 V ~ 5 V DC
    • 0 V ~ 10 V DC.
  • Power supply: DC 15 V ~ 28 V.

Installation and Adjustments

  • External adjustments for zero and full‑scale span.
  • Compact size for easy installation.

Certifications

  • CE certification.
  • RoHS compliant.

Applications

  • Suitable for use in petroleum, chemical, electricity, and hydrology industries.
