NG # 2268-HW-PEP-020

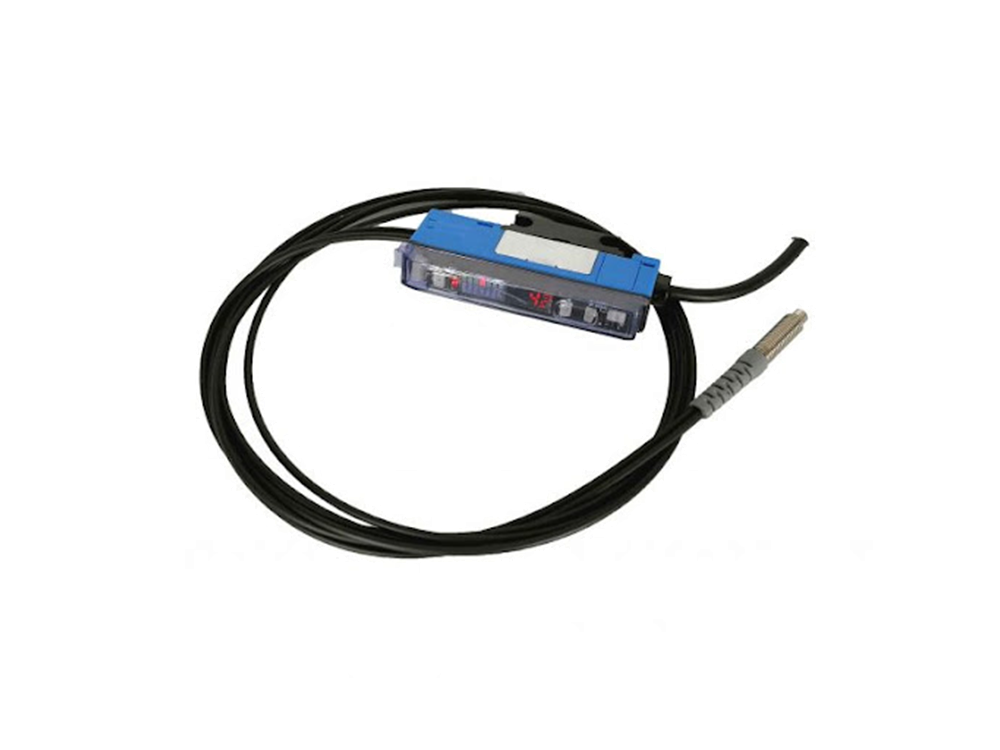

Pepperl+Fuchs fiber optic photoelectric sensors consist of a fiber optic amplifier (evaluator) paired with a fiber optic cable (sensing head). This modular system physically separates the optoelectronic evaluation circuitry from the point of detection, making it the ideal solution for narrow mounting locations, extreme heat, or aggressive chemical environments.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

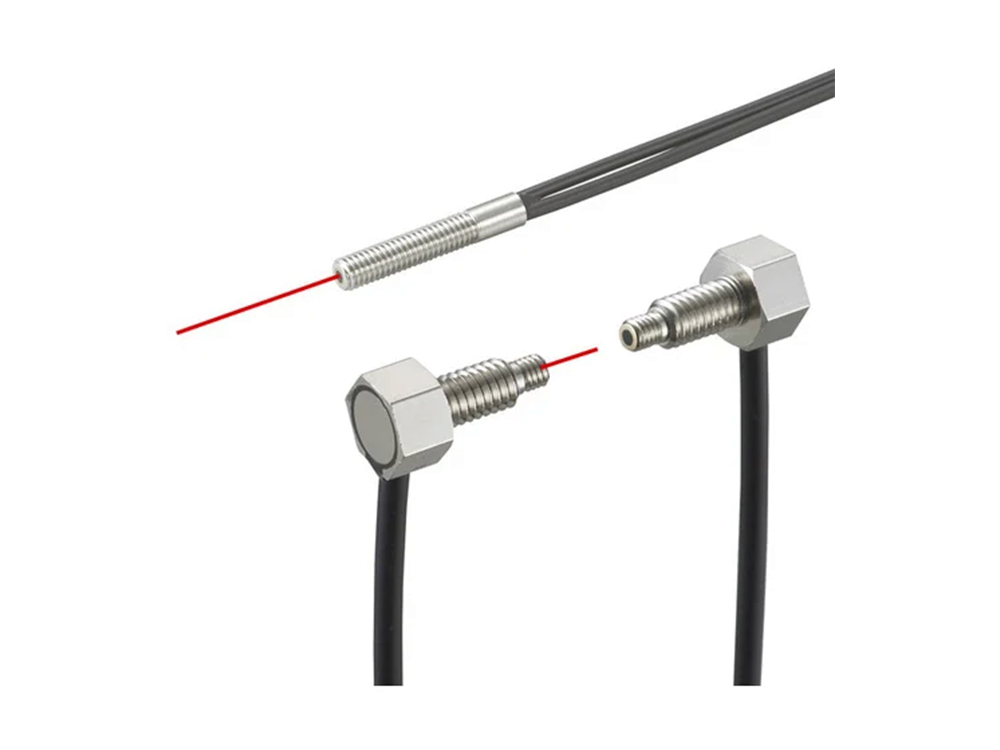

Get A QuoteFiber optic sensors provide a sensing solution for applications involving small targets or unfavorable conditions. Fiber optic sensors & cables can be used in much smaller areas, in harsher environments, at temperature extremes that ordinary photoelectric sensors could not withstand.
Fiber optic sensors come in a variety of sizes and shapes ranging from small DIN-rail mountable units to 18mm cylindrical housings to full-size limit switch housings. The sensors are available with numerous outputs, digital displays and a wide assortment of cables to choose from.
| Parameter | Glass Fiber System | Plastic Fiber (POF) System |
| Fiber Material | Multi-strand glass fiber bundle in silicone, stainless steel, or PVC sheath | PMMA (Polymethyl methacrylate) monofilament / core |
| Temperature Range | High temperature: -40 °C to +300 °C (-40 °F to +572 °F) | Standard: -40 °C to +70 °C (-40 °F to +158 °F) |
| Bend Radius | Flexible (armored variants resist severe crushing) | Ultra-flexible (down to 1 mm minimum bend radius) |
| Response Time | Up to 80 µs (High-Speed mode on SU18) | Up to 80 µs – 500 µs (depending on mode selected) |
| Sensing Range ($s_n$) | Up to 2,000 mm+ (Thru-beam mode) | Up to 460 mm – 1,400 mm (varies by amplifier & head) |
| Light Source | Visible Red LED (660 nm) or Infrared LED (880 nm) | Visible Red LED (660 nm) |
| Operating Voltage ($U_B$) | 10 – 30 V DC | 10 – 30 V DC |
| Output Types | PNP, NPN, Push-Pull (4-in-1), or Analog | PNP, NPN, Push-Pull (4-in-1), or Analog |
| Protection Degree | IP65 to IP67 (Amplifier) / IP68 (Sensing Head) | IP65 to IP67 (Amplifier) |
