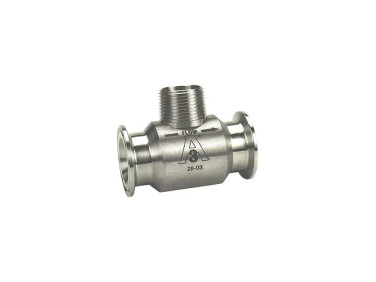

Flomec GPI GSCPS Series Turbine Flow Meter

  • NG # 0741-HW-FLO-003

High-Temperature precision turbine flow meters with sanitary clamp process connection with 3-A sanitary rating.

Manufactured By :
Flomec GPI
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The precision GPI GSCPS Series turbine flow meter offers outstanding accuracy and reliability. With rugged stainless steel body the GPI GSCPS Series turbine flow meter is compatible with most chemicals and will stand up well to high pressure applications. With an increased temperature rating (-100 to 225°F) and utilizing a Tri-Clover® sanitary clamp connection, the GSCPS is an excellent choice for food and beverage applications that require high accuracy with strict 3-A Approval. The internals of this meter are machined or polished to meet 3-A self-draining and cleaning requirements (Ra 32as well as Clean in Place (CIP), Steam in Place (SIP) and Clean Out of Place (COP) requirements.

The precision GPI GSCPS Series turbine flow meter has a basic accuracy of ±0.5% along with a repeatability of ±0.1% of the indicated flow throughout the linear range. A number of sensor and electronics selections are available to suit particular application needs. The GPI GSCPP Series turbine flow meter is available in sizes from 1" (6.7 to 67 GPM) to 2" (33 to 330 GPM). A low profile version of this meter is available for applications in tight spaces.

Specification


Sizes: 1" (6.7 to 67 GPM) to 2" (33 to 330 GPM)Accuracy: ±0.5%Repeatability: ± 0.1%Temperature rating: -100 to 225°FTri-Clover sanitary clamp process connectionStainless steel body3-A sanitary ratingMeets CIP, COP and SIP requirements
