NG # 00473-HW-Fluke-036

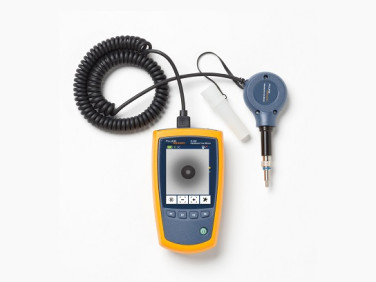

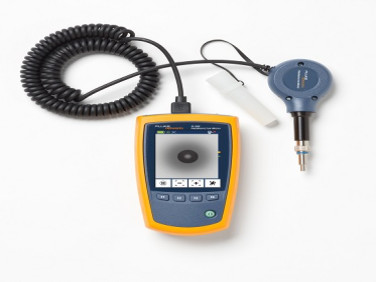

Ensure the cleanliness and integrity of fiber end faces, even in low-light conditions, with the Fluke Networks FI-500 FiberInspector Micro fiber inspection scope camera.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe FI-500 is designed to simplify the inspection process. The built-in PortBright flashlight helps you find the right port or cable. The small-profile probe fits into tight spots, and features pushbutton controls for simple operation. Autofocus camera provides a sharp view of the endface in a few seconds, while the pause button freezes the image on the crisp 320 x 240 display for more detailed inspection.
The FI-500 FiberInspector™ Micro fiber inspection scope camera removes the hassle associated with inspecting fiber end faces, especially in low light and high cable density situations. It is very simple to use: Simply plug the cable into the FI-500 and touch the AF button.
| Temperature range without the power adapter | Operating: 0 °C to +50 °C, Storage: -30 °C to +60 °C | ||
| Temperature range with the power adapter | Operating: 0 °C to +40 °C, Storage: -20 °C to + 60 °C | ||
| Humidity range | Operating: 0% to 95% °C (0 °C to +50 °C) RH non-condensing, Storage: 0% to 95% (35 °C to 45 °C) RH non-condensing | ||
| Altitude | Operating: 4,000 meters, Storage: 12,000 meters | ||
| Vibration | 2 g, 5 Hz to 500 Hz | ||
| Shock | 1 meter drop test | ||
| Safety | IEC 61010-1 3rd Edition IEC 62133 | ||
| Power adapter | Input: 100 to 240 VAC±10%, 50/60Hz, Output: 6 VDC, 3 A maximum Class | ||
| Display | 3.2 inch TFT LCD, 320 x 240 | ||
| Dimensions | 4.6 in x 2 in x 0.95 in (117 mm x 51 mm x 23 mm) (length depends on adapter tip) | ||
| Weight | 4.4 oz (125 g)(with no adapter tip) |
Fluke FI-500 FiberInspector™ Micro Manual
Fluke FI-500 FiberInspector™ Micro Data Sheet
