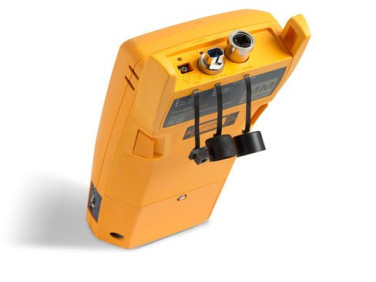

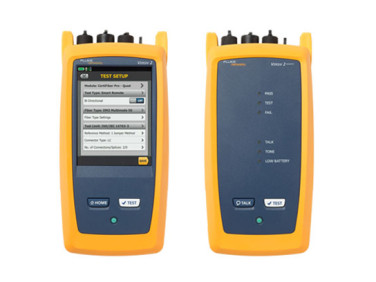

Fluke CertiFiber® Pro Optical Loss Test Set

  • NG # 00477-HW-Fluke-040

  • MF # CFP2-100-Q

The CertiFiber Pro Optical Loss Test Set improves the efficiency of fiber optics certification. The Taptive user interface simplifies set-up, eliminates errors and speeds troubleshooting. A set reference wizard ensures correct reference setting and eliminates negative loss errors. Built on the future-ready Versiv platform, CertiFiber Pro Optical Loss Test Set (OLTS) provides merged Tier 1 (Basic) / Tier 2 (Extended) testing and reporting when paired with OptiFiber Pro module.

Manufactured By :
fluke
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

A convenient quad module supports both singlemode and multimode and is multimode Encircled Flux compliant. Copper certification and Wi-Fi Analysis and Ethernet troubleshooting modules are also available. Analyze test results and create professional test reports using LinkWare Management Software.

Specification


Input Connector
nterchangeable connector adapter (LC standard, SC, ST and FC optional)
Detector Type
InGaAs
Wavelengths
850 nm, 1300 nm, 1310 nm, 1550 nm
Power Measurement Range
0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths)
Power Measurement Uncertainty1,2
< +/- 5% +/- 32 pW
Measurement Linearity3
< ± 0.1 dB
Re-calibration Period
1 year
Integrated Wi-Fi
Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
Output Power
>-5 dBm <0 dBm SMF-28 singlemode fiber Continuous wave SC/UPC connector
Operating Wavelength
650 nm nominal
Output Modes
Continuous wave Pulsed mode (2 Hz to 3 Hz blink frequency)
Connector Adapter
2.5 mm universal
Vibration
Random, 2 g, 5 Hz-500 Hz
Shock
1 m drop test with and without module and adapters



CATALOGS

Fluke CertiFiber® Pro Optical Loss Test Set Manual

Fluke CertiFiber® Pro Optical Loss Test Set Data Sheet
