RFQ

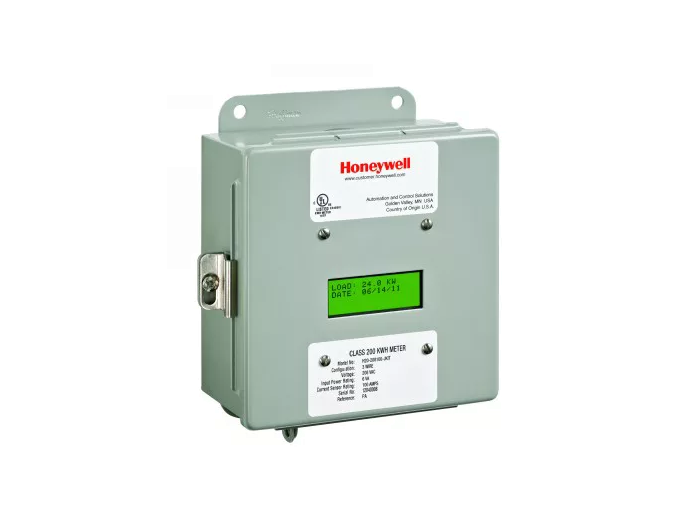

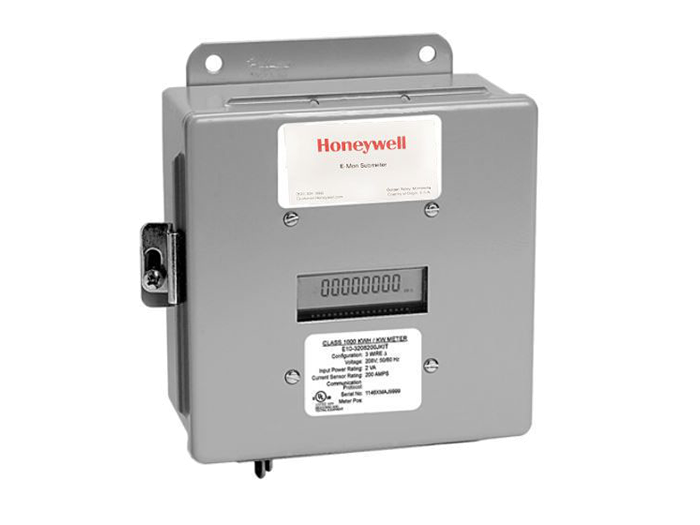

Honeywell E-Mon™ Class 2000 Green Pulse Meter

  • NG # 01166-HW-HNWEL-192

Submeter for Eco-Friendly Classrooms: Measures CO2 Levels and Carbon Footprint Data.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

E-Mon Green Class 2000 meters display cumulative kWh and real-time kW load. In addition, these meters allow the user to enter their local cost per kWh to provide accurate to-date energy costs and projected hourly costs based on the metered load.

Specification

  • Direct-read two-line alpha-numeric LCD display without multiplier displays cumulative kWh, peak demand with date & time, and "real-time" kW load.
  • User entered cost per kWh provides to-date energy cost and projected hourly cost based on metered load
  • Displays total carbon (CO2) emissions in pounds (lbs.) and indicates hourly emissions based on metered load
  • Patented 0-2 volt output split-core current sensors promote enhanced safety and accurate remote mounting of current sensors up to 2,000 feet from the meter without power interruption (Optional solid-core current sensors available in 100 & 200 Amp only)
  • Onboard installation diagnostics & verification system.
  • Parallel up to three (3) sets of current sensors for cumulative reading.
  • Non-volatile memory
  • The meter can be used in the following configurations:​ 3-Phase, 4-Wire, 3-Phase, 3-Wire​
  • Fixed-value pulse output
  • Green Industrial grade JIC steel enclosure (standard) ​or optional gray NEMA 4X polycarbonate enclosure ​
