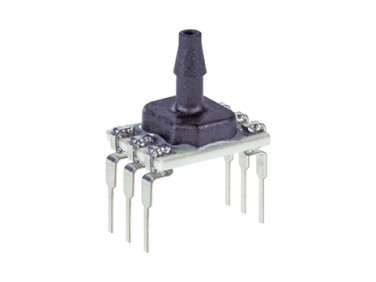

Honeywell Gauge Pressure Sensor, 207kPa Operating Max, PCB Mount, 6-Pin, 1724kPa Overload Max, DIP

NG # 03081-HW-HONEYWELL-329
MF # ABPDANV030PGSA3

Manufactured By :

Honeywell

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Honeywell ABP Series are piezoresistive silicon pressure sensors offering a ratio metric analog or digital output for reading pressure over the specified full-scale pressure span and temperature range. They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and accuracy errors (which include nonlinearity, repeatability, and hysteresis) using an onboard Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital. All products are designed and manufactured according to ISO 9001 standards

Measures gage and differential pressures
Total Error Band (see Figure 1): ±1.5 %FSS
Liquid media option: Allows for wet/wet operation on dual-ported devices
Industry-leading long-term stability: ±0.25 %FSS
Industry-leading accuracy: ±0.25 %FSS BFSL
As small as 8 mm x 7 mm

Specification

Maximum Overload Pressure	1724kPa
Mounting Type	PCB Mount
Package Type	DIP
Pin Count	6
Maximum Operating Pressure	207kPa
