NG # 03132-HW-HONEYWELL-380
MF # 2306B2000

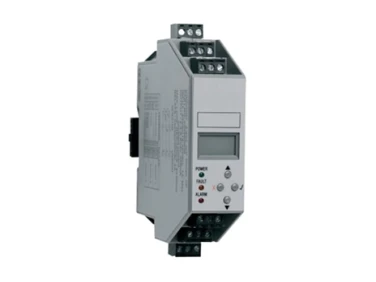

The Honeywell Unipoint Controller is a compact, DIN-rail-mounted gas detection controller designed to integrate flammable, toxic, and oxygen gas detection into control systems. It provides a cost-effective solution for small and medium-sized gas monitoring applications and can work with a wide range of Honeywell gas detectors. The controller supports both mV bridge and 4–20 mA detector inputs, allowing flexible system configuration.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe Unipoint features an ultra-clear backlit display, built-in audible and visual alarms, programmable alarm settings, and relay outputs for connecting external equipment. Its compact DIN-rail design and removable terminal connectors simplify installation inside control cabinets and panels. Typical applications include boiler houses, HVAC systems, car parks, laboratories, analyzer shelters, crane cabs, and unmanned equipment rooms.
| Specification | Details |
|---|---|
| Product Type | Gas Detection Controller |
| Model | Unipoint DIN Controller |
| Input Types | 3-wire mV bridge; 2- and 3-wire 4–20 mA |
| Detector Compatibility | Flammable, toxic and oxygen gas detectors |
| Power Supply | 18–32 V DC |
| Power Consumption | 3.0 W excluding 3-wire detector; 4.8 W including detector |
| Relay Outputs | 3 alarm relays + 1 system fault relay |
| Relay Rating | SPCO, 3 A at 240 V AC / 28 V DC, non-inductive |
| Alarm Configuration | Latching/non-latching; energized/de-energized |
| Alarm Delay | 0–900 seconds |
| Display | Ultra-clear backlit digital display |
| Indicators | Green power, red alarm, amber fault |
| Mounting | TS35 “Top Hat” DIN rail |
| Audible Alarm | Built-in, approximately 63 dB |
| Operating Humidity | 10–90% RH, non-condensing |
| Storage Temperature | -25°C to +60°C |
| Ingress Protection | IP3x |
| Weight | Approximately 225 g |
| Terminal Type | Plug-in screw terminals |
| Configuration Security | Password-protected menus |
| Applications | HVAC, boiler houses, car parks, laboratories, control cabinets, unmanned rooms |
