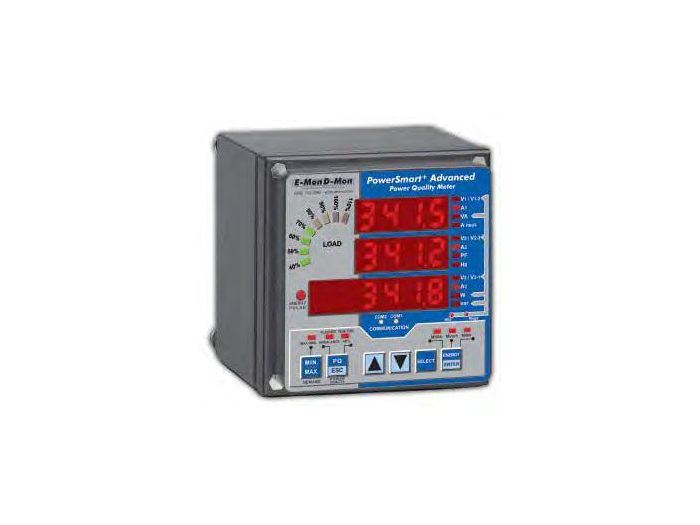

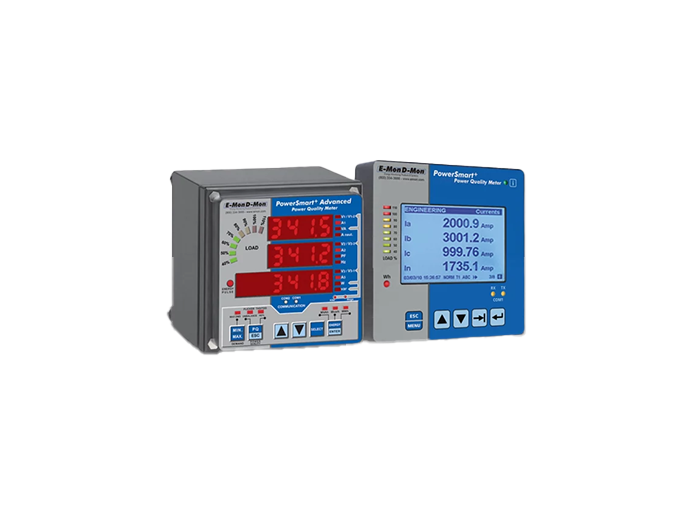

Honeywell E-Mon™ PowerSmart+ Advanced

  • NG # 01163-HW-HNWEL-189

Integrated Power Meter with Power Quality Analysis Capabilities

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The E-Mon PowerSmart+ Advanced meter is a multi-functional power meter combined with a power quality analyzer. The meter has extensive memory and data logging capability to support full harmonic analysis and waveform recording

Specification

  • Class 0.2 four-quadrant multi-function 3-phase energy meter (TrueRMS, volts, amps, power, power factor, neutral current, voltage &- current unbalance &- frequency.)
  • Easy-to-read 3-row bright LED display, adjustable update time, auto-scroll option with adjustable page exposition time, and auto-return to a default page
  • LED bar graph showing percent load with respect to user-definable nominal load current
  • Supplied with E-Mon Power Software for meter set up and power quality analysis (requires RS-485 key for communication)
  • Ampere/Volt/THD/TDD demand meter with advanced power quality features including embedded harmonic analyzer, voltage and current THD, current TDD and K-Factor, inter-harmonics THD, up to the 50th order harmonic
  • Real-time waveform capture and monitoring- simultaneous 6-channel 4-cycle capture at 128 samples per cycle
  • 3 voltages and 3 current transformer-isolated AC inputs for direct connection to power line or via potential and current transformers
  • Voltage and current harmonic spectrum and angles
  • Current Sensor Options: Available with integrated 5 Amp current sensors for use with existing 5 Amp output current transformers or available as a meter-only configuration for use with PowerSmart+ current sensors. Current sensor leads can be extended up to 500 feet for remote installation (sold separately, see PowerSmart+ current sensor spec for details)
  • Standard 2-wire RS-485 communication port- Modbus RTU, DNP3, and ASCII communication protocols
  • Optional Ethernet 10/100BaseT port for Modbus TCP/IP communication
  • Two digital inputs for monitoring external contacts, and receiving pulses from energy, water, and gas meters. Two relay outputs for alarms and controls, and for output of energy pulses
  • Optionally available pre-installed inside a JIC steel enclosure with a lockable window panel and 3-phase voltage terminal block. Dimensions: 14” H x 12” W x 8” D
  • Time of Use (TOU), 8 totalization and tariff energy/demand registers x 8 tariffs, 4 seasons x 4 types of days, 8 tariff changes per day, easy programmable tariff schedule
  • Automatic daily profile for energy and maximum demand readings (total and tariff registers)
  • Embedded programmable controller- 16 control setpoints- programmable thresholds and delays- relay output control- 1/2 cycle response time
  • Event recorder for logging and internal diagnostics events, control events, and I/Ooperations. 16 data recorders- programmable data logs on a periodic basis and on any internal and external trigger.
  • Two waveform recorders- simultaneous 6-channel AC recording in a single plot- sampling rate of 32, 64, and 128 samples per cycle- 20 pre-fault cycles- up to 30 seconds of continuous recording at a rate of 32 samples per cycle.
  • EN50160 Power Quality recorder (EN50160 compliance statistics, EN50160 harmonics survey statistics, onboard power quality analyzer, programmable thresholds and hysteresis- ready-for-use reports)
