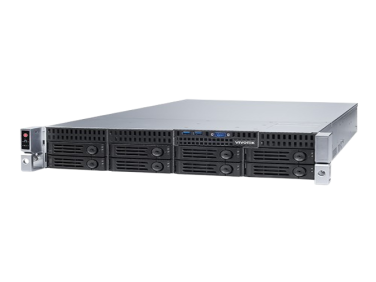

Get A QuoteThe VIVOTEK NR9581-V3 is a high-performance 128-channel, 8-bay network video recorder (NVR) designed for enterprise and large-scale surveillance systems.
It comes with a built-in 32-channel VAST Security Station Pro (VSS Pro) license, expandable up to 128 channels, and supports RAID 0/1/5/6/10/50/60 for flexible and secure data storage.
Featuring dual 2.5GbE network ports, redundant power supplies, and Windows 11 with TPM 2.0 hardware security, the NR9581-V3 ensures reliability, protection, and high availability for 24/7 operations.
With Deep Search AI technology and seamless integration with VIVOTEK Vision Object Analytics cameras, users can quickly locate people or vehicles within footage, making surveillance management faster and smarter.
| Category | Specification |
|---|---|
| Model | VIVOTEK NR9581-V3 |
| Product Type | 128-Channel, 8-Bay Network Video Recorder (Recording Server) |
| Operating System | Windows 11 with TPM 2.0 Hardware Security |
| Video Management Software | VIVOTEK VAST Security Station Pro (VSS Pro) Built-in |
| Recording Channels | 32 Channels Embedded (Expandable up to 128 Channels) |
| Recording Throughput | Up to 512 Mbps |
| RAID Support | RAID 0, 1, 5, 6, 10, 50, 60 |
| HDD Bays | 8 × Hot-Swappable Bays |
| Storage Type | SATA HDD / SSD (per compatibility list) |
| Network Interface | Dual 2.5GbE LAN Ports (Redundancy / Link Aggregation) |
| Power Supply | Dual Redundant Power Supplies |
| Display Output | HDMI ×1, DisplayPort ×1, DVI ×1, VGA ×1 |
| Display Resolution | Up to 7680 × 4320 (8K via DP) |
| Video Compression | H.265, H.264, MPEG-4, MJPEG |
| AI Features | Deep Search (People, Vehicle, Attribute, Path, Appearance) |
| Analytics Integration | Supports Vision Object Analytics Cameras |
| System Monitoring | Device & Health Monitoring (Beta), HDD S.M.A.R.T. Alerts |
| Failover Function | Substation Failover Server Support |
| Security Features | TPM 2.0, Secure Boot, BitLocker Encryption |
| Form Factor | 2U Rack-Mount Server |
| Dimensions (H × W × D) | Approx. 89 × 437 × 648 mm |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Supported Browsers / Clients | VSS Web Client, Desktop Client, Mobile App |
| Scalability | Supports up to 22,400 Cameras via VSS Pro Architecture |
