NG # 02417-HW-VIVO-013
MF # FD9380-HF3

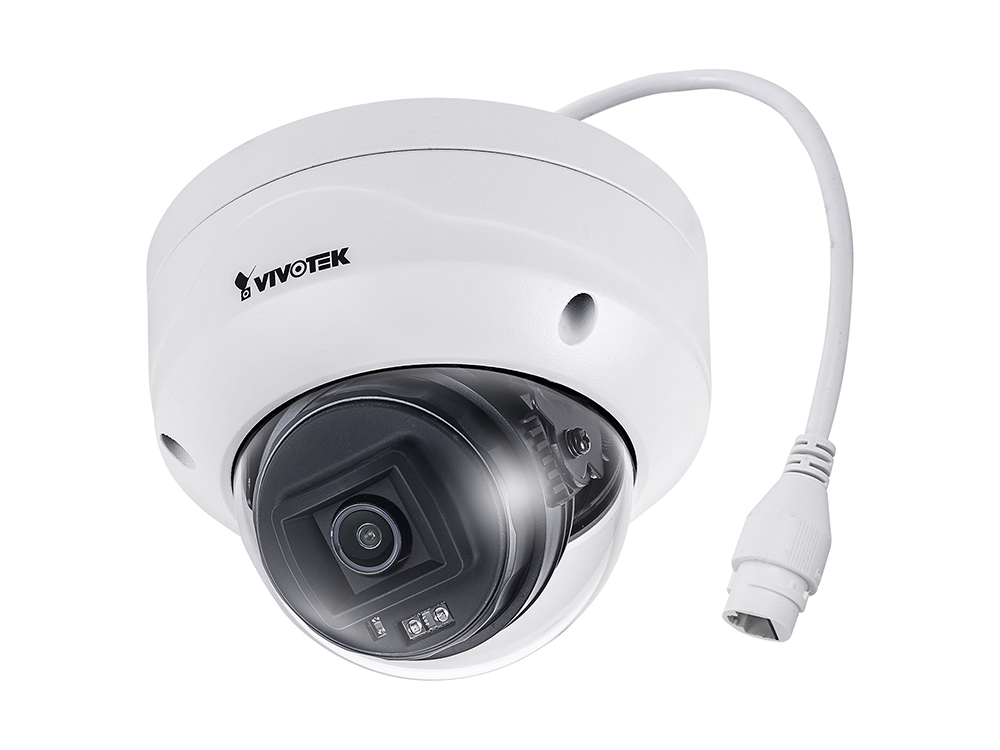

Vivotek FD9380-HF3 - Network surveillance camera - dome - outdoor - dustproof/waterproof - color (Day&Night) - 5 MP - 2560 x 1920 - fixed focal - LAN 10/100 - MJPEG, H.264, H.265 - PoE
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteVivotek's FD9380-H is a H.265 outdoor dome network camera equipped with a 5.0MP sensor, enabling resolution of 2560x1920 at 20 fps. Featuring Vivotek SNV and WDR Pro technology, the FD9380-H is capable of capturing high-quality imagery in both high-contrast and low-light environments.
The FD9380-H deploys a 2.8mm/3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the FD9380-H is encased in IP66 and IK10 housing.
By employing Vivotek's Smart Stream III technology and H.265 codec support, the FD9380-H is able to reduce bandwidth usage by up to 90% while maintaining supreme image quality. Additionally, the VADP (Vivotek Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.
| General | |
| Device Type | Network surveillance camera |
| Form Factor |
Dome
|
| Connectivity Technology | Wired |
| Width | 4.6 in |
| Depth | 4.6 in |
| Height | 3.5 in |
| Weight | 19.05 oz |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - dustproof / waterproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2560 x 1920 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Minimum Illumination | 0.03 lux - color - F2.0 ¦ 0.005 lux - B&W - F2.0 |
| Infrared LEDs | 2 |
| Infrared Distance | 98 ft |
| Video Capture | 2560 x 1920 @ 20 fps |
| Features | Progressive scanning, ONVIF support, built-in IR illuminator, Smart IR, triple video stream, Wide Dynamic Range (WDR) Pro, 3D Digital Noise Reduction Technology, Smart Stream III, 90° image rotation |
| Image Sensor | |
| Type | 5 MP PS CMOS 1/2.9" |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 3.6 mm |
| Lens Iris | F/2.0 |
| Horizontal Field of View (degree) | 76 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, RTCP, PPPoE, SMB, IGMP, SSL, QOS, CoS, CIFS |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Included Accessories | Template, screws |
| Compliant Standards | FCC Class B certified, UL, VCCI, C-Tick, IP66, LVD, IEEE 802.3af |
| Power | |
| Power Requirements | PoE |
| Power Device | 6.49 Watt |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) |
8% |
