NG # 2269-HW-VIVO-003
MF # FD9387-HTV-A

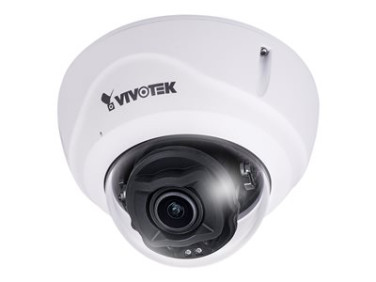

Vivotek FD9387-HTV-A - V Series - network surveillance camera - dome - outdoor - vandal / weatherproof - color (Day&Night) - 5 MP - 2560 x 1920 - vari-focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / AC 24 V / PoE
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteVIVOTEK FD9387-A is a series of outdoor dome network camera offering up to 30 fps @ 5-Megapixel or 60 fps @ full HD sensor with superb image quality at all resolutions or frame rates. Featuring VIVOTEK SNV and WDR Pro technology, FD9387-A Series is capable of capturing high quality image whether in high contrast or low light environment.
The FD9387-A series offers remote focus lens for different user scenario. IR illuminators are equipped with 50 meter effective range for better night visibility. For harsh outdoor environment, FD9387-A series is encased in IP66, IP67 and IK10 housing, making it impervious to rain and dust.
Employing VIVOTEK's Smart Stream III technology and H.265 codec support, the FD9387-A Series reduces bandwidth up to 90% while keeping great image quality.
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 6.1 in |
| Depth | 6.1 in |
| Height | 4.1 in |
| Weight | 32.06 oz |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal/weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2560 x 1920 |
| Motion Detection | Yes |
| Digital Zoom | 48 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Minimum Illumination | 0.075 lux - color - F1.4 ¦ 0.01 lux - B&W - F1.4 ¦ 0 lux - IR |
| Infrared LEDs | 4 |
| Infrared Distance | 164 ft |
| Frame Rate (max) | 30 frames per second |
| RAM | 1 GB |
| Flash Memory | 256 MB |
| Features | Manual white balance, Backlight Compensation (BLC), date/time stamp, sharpness control, saturation control, brightness control, contrast control, image flip, image mirror, ONVIF support, Privacy Mask Function, Seamless Recording, Highlight Compensation (HLC), ePTZ, NAS-Ready, Text Caption Overlay, triple video stream, Wide Dynamic Range (WDR) Pro, Audio Detection, Defog, Supreme Night Visibility, 3D Digital Noise Reduction Technology, remote focus, exposure control, infrared-cut filter, Smart Stream III, Smart Motion Detection |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.7" |
| Lens Construction | |
| Type | Vari-focal |
| Optical Zoom | 5 x |
| Focal Length | 2.7 mm - 13.5 mm |
| Lens Iris | F/1.4-2.8 (P-Iris) |
| Focus Adjustment | Motorized |
| Horizontal Field of View (degree) | 30 - 100 |
| Vertical Field of View (degree) | 23 - 72 |
| Diagonal Field of View (degree) | 38 - 135 |
| Panning | |
| Range (degree) | 350 |
| Tilting | |
| Range (degree) | 80 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, RTCP, PPPoE, SMB, IGMP, SSL, QOS, CoS, CIFS |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 2 |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, VCCI, C-Tick, IP67, IK10, IP66, LVD, BIS |
| Power | |
| Power Requirements | DC 12 V / AC 24 V / PoE |
| Power Device | 12 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / Windows 8, Apple macOS 10.12 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 0 - 98% |
