Pepperl+Fuchs Inductive sensor NBN25-30GM50-US

  • NG # 04174-HW-PEP-056

  • MF # NBN25-30GM50-US

The NBN25‑30GM50‑US is an industrial inductive proximity sensor designed for non‑flush mounting. It features a two‑wire AC/DC configuration and delivers reliable detection of metallic objects at a rated operating distance of 25 mm. The device offers robust performance with reverse polarity and short‑circuit protection, and it meets key industrial protection and certification standards.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

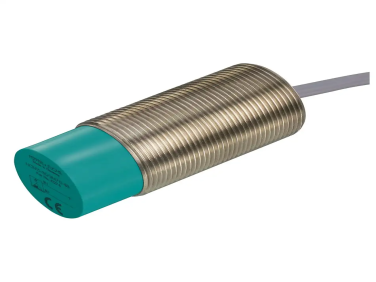

The Pepperl+Fuchs NBN25‑30GM50‑US inductive sensor is a rugged sensing device used for detecting metallic targets in automation and industrial environments. Its non‑flush installation profile makes it suitable for applications where partial protrusion from a mounting surface is required. Designed for durability and stable operation across a range of environmental conditions, this sensor supports AC and DC supply voltages and integrates protective features for reliable long‑term use.

Specification

General Specifications

  • Sensor type: Inductive proximity sensor
  • Model: NBN25‑30GM50‑US
  • Installation type: Non‑flush
  • Switching function: Normally open (NO)

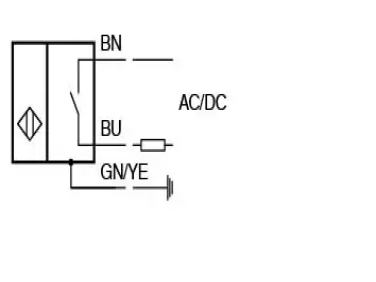

  • Output type: Two‑wire
  • Rated operating distance: 25 mm

Electrical Characteristics

  • Operating voltage: 20 … 250 V AC/DC
  • Rated operating current: 4 … 500 mA
  • Reverse polarity protection: Yes
  • Short‑circuit protection: Yes
  • Voltage drop (Ud): ≤ 8 V
  • Switching frequency: 30 Hz

Mechanical and Environmental

  • Housing material: Brass, nickel‑plated
  • Sensing face material: PBT
  • Cable connection: 3‑core cable
  • Cable diameter: 6.2 mm ± 0.6 mm
  • Protection degree: IP67
  • Ambient temperature range: -25 … 70 °C
  • Storage temperature range: -40 … 85 °C

Certifications

  • CE conformity
  • cULus (UL and CSA) listed
  • China Compulsory Certification (CCC)

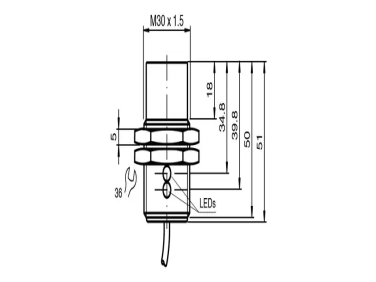

Dimensions and Weight

  • Body diameter: 30 mm
  • Length: 51 mm
  • Mass: Approx. 220 g
