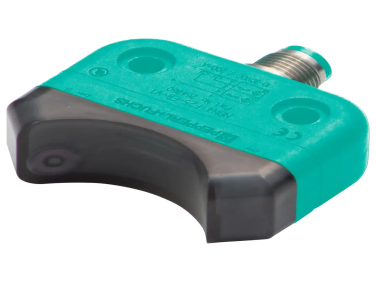

Pepperl+Fuchs Inductive sensor NBN4-F25-E8-V1

  • NG # 04175-HW-PEP-057

  • MF # NBN4-F25-E8-V1

The NBN4‑F25‑E8‑V1 is a compact inductive sensor with a 4 mm detection range, PNP output, and dual normally open outputs. It offers mounting flexibility and clear LED indicators for operational status while providing protection against environmental exposure. Ideal for general industrial automation tasks requiring reliable proximity detection.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pepperl‑Fuchs NBN4‑F25‑E8‑V1 is an inductive proximity sensor designed for reliable object detection in industrial applications. It features robust construction with protection to IP67 and standard mounting options. The sensor is particularly suited for environments requiring small size, direct mounting, and clear status indication.

Specification

General Characteristics

  • Inductive proximity sensor type NBN4‑F25‑E8‑V1
  • Switching function: two normally open (NO) outputs
  • Output type: PNP
  • Rated operating distance: 4 mm
  • Mounting: flush mountable
  • Output polarity: DC

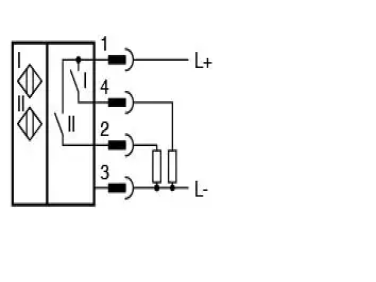

  • Output wiring: 3‑wire

Electrical Characteristics

  • Operating voltage Ub: 10 … 30 V DC
  • Switching frequency: up to 1000 Hz
  • Reverse polarity protection: protected
  • Short‑circuit protection: pulsing
  • Voltage drop Ud: ≤ 2.5 V
  • Operating current IL: 0 … 200 mA
  • No‑load supply current I0: ≤ 22.5 mA

Indicators

  • Power‑on indicator LED (green)
  • Switching state indicator LED (yellow)

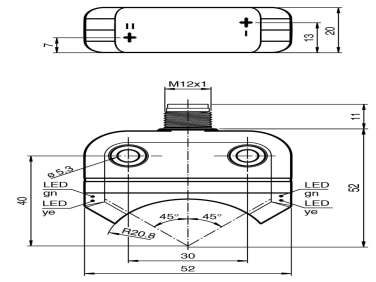

Environmental and Mechanical

  • Ambient temperature range: −25 … 70 °C
  • Storage temperature range: −40 … 85 °C
  • Degree of protection: IP67
  • Connector type: M12 × 1, 4‑pin
  • Housing material: PBT with PC sensing face
  • Weight: approximately 48 g

Compliance and Standards

  • Conforms to EN IEC 60947‑5‑2 standards
  • UL cULus listed for specified ratings
