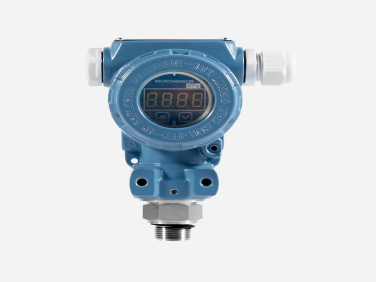

Pressure Transmitter

  • NG # 0405117-HW-BFS-017

Pressure Transmitter delivers precise pressure and level measurement with 4–20 mA HART communication. Its high accuracy, self-diagnostics, external adjustment buttons, and broad certification options make it ideal for demanding oil & gas, power, chemical, and process applications.





Manufactured By :
Bliss Flow Systems
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pressure Transmitter is designed for reliable gauge, absolute pressure, and level measurement across demanding industrial processes. It provides 4–20 mA HART output, loop-powered operation, up to ±0.075% accuracy, LCD display, self-diagnostics, zero trim, and external controls. Available configurations support sensor ranges up to 60,000 kPa and working pressures up to 75 MPa. Certifications include SIL2, Ex d, Ex ia, FM, ATEX, CE, IP66/67, and NEMA 4X, supporting oil & gas, marine, power, chemical, and refinery applications.

Specification

APT3200-G/F

  • Sensor Range: -100 to 60,000 kPa
  • Calibrated Span: 1.5 to 60,000 kPa
  • Max. Working Pressure: 75 MPa / 10,877 psi
  • Advantage: High gauge pressure; flushing connection type with welding adapter

APT3200-A

  • Sensor Range: 0 to 2,500 kPa(A)
  • Calibrated Span: 2.5 to 2,500 kPa(A)
  • Max. Working Pressure: 5.25 MPa / 761 psi
  • Advantage: Absolute pressure

APT3200-F

  • Sensor Range: 0 to 2,500 kPa(A)
  • Calibrated Span: 2.5 to 2,500 kPa(A)
  • Max. Working Pressure: 5.25 MPa / 761 psi
  • Advantage: Absolute pressure

APT3200-G-ST

  • Sensor Range: 0 to 2,500 kPa(A)
  • Calibrated Span: 2.5 to 2,500 kPa(A)
  • Max. Working Pressure: 5.25 MPa / 761 psi
  • Advantage: Absolute pressure
