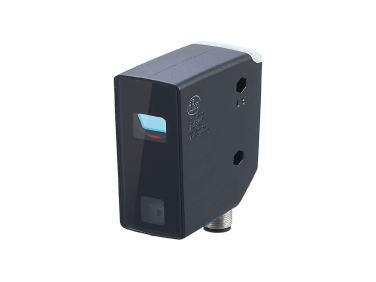

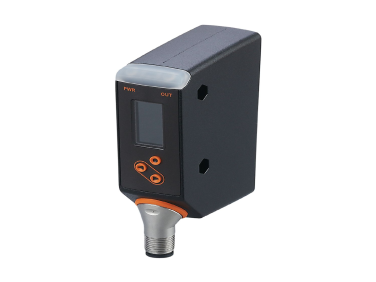

PMD Profiler for object profile checking Inline quality control checks to ensure correct assembly of parts Quick set-up without software
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteDistance-independent measurement for high tolerance on object positioning Immunity to extraneous light – no screening or external illumination required
| Type of light | red light |
| Laser protection class | 1 |
| Housing | rectangular |
| Operating voltage[V] | 10...30 DC; ("supply class 2" to cULus) |
| Current consumption[mA] | < 200; (10 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] | 2 |
| Type of light | red light |
| Wave length[nm] | 650 |
| Number of inputs and outputs | Number of digital inputs: 1; Number of digital outputs: 2 |
| Trigger | external |
| Number of digital inputs | 1 |
| Electrical design | PNP/NPN; (parameterisable) |
| Number of digital outputs | 2 |
| Output function | 2 x normally open / normally closed; (parameterisable) |
| Max. current load per output[mA] | 100 |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Measuring distance (Z-direction)[mm] | 150...300 |
| Width of the measuring range (X-direction) at min. measuring distance[mm] | 45; (distance = 150mm) |
| Width of the measuring range (X-direction) at max. measuring distance[mm] | 90; (distance = 300mm) |
| Sampling rate[Hz] | 5 |
| Measured value resolution |
| |||
| Accuracy |
|
| Number of profiles which can be stored | 1 |
| Number of regions of interest | 1 |
| Communication interface | IO-Link | ||||||||
| Transmission type | COM3 (230,4 kBaud) | ||||||||
| IO-Link revision | 1.1 | ||||||||
| SDCI standard | IEC 61131-9 | ||||||||
| Profiles |
| ||||||||
| SIO mode | yes | ||||||||
| Required master port type | A | ||||||||
| Min. process cycle time[ms] | 2.3 | ||||||||
| IO-Link process data (cyclical) |
| ||||||||
| IO-Link functions (acyclical) | operating hours counter; number of trigger events; ROI setting | ||||||||
| Supported DeviceIDs |
| ||||||||
| Note |
|
| Ambient temperature[°C] | -10...55 |
| Storage temperature[°C] | -40...60 |
| Protection | IP 65 |
| Max. immunity to extraneous light[klx] | 20 |
| EMC |
| ||||||||||
| Laser protection class | 1 | ||||||||||
| Notes on laser protection |
| ||||||||||
| MTTF[years] | 155 | ||||||||||
| UL approval |
|
| Weight[g] | 535.8 |
| Housing | rectangular |
| Dimensions[mm] | 88 x 28.5 x 65 |
| Materials | housing: diecast zinc; PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: PMMA |
| Display |
|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A |
