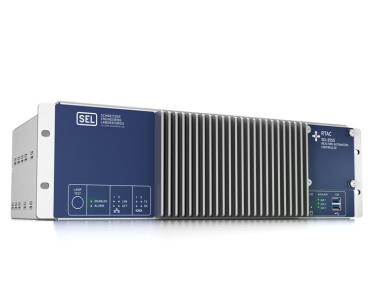

SEL-3555 Real-Time Automation Controller (RTAC)

  • NG # 03864-HW-SEL-033

The SEL-3555 is our most powerful RTAC model, featuring multicore processing and configurable RAM options capable of running multiple applications simultaneously and meeting the industry's most demanding requirements.

Manufactured By :
SEL
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The optional integrated web HMI with a local display port eliminates the need for an additional computer. Ideal for the most demanding applications, this model integrates up to 256 devices and supports up to 100,000 data points.

Specification

CPUIntel® Core™ i7-3555LE Dual Core Speed: 2.5 GHz base, 3.2 GHz turbo Cache: 2 x 256 KB L2, 4 MB L3 Intel Core i7-3612QE Quad Core* Speed: 2.1 GHz base, 3.1 GHz turbo Cache: 4 x 256 KB L2, 6 MB L3
RAM8 GB DDR3 ECC PC3-10600 (1,333 MHz)
VideoDVI-I (digital + VGA)
Maximum resolution: 1920 x 1200 @ 32 bpp
DVI-D (digital only)
Maximum resolution: 1920 x 1200 @ 32 bpp
DisplayPort
Maximum resolution: 1920 x 1200 @ 32 bpp
USB4 rear-panel ports, 2 front-panel ports
USB 2.0-compliant, 800 mA current limit each
EthernetETH 1: Intel 82579LM, 10/100/1000 Mbps, RJ45 copper ETH 2: Intel 82574L, 10/100/1000 Mbps, RJ45 copper SEL-3390E4 PCIe x4 Expansion Cards: As many as 8 additional 10/100/1000 Mbps ports, copper or LC fiber small form-factor pluggable (SFP)*
Serial2 EIA-232 ports, DB-9 connectors, 300 to 115200 bps
6 EIA-232/422/485 ports, RJ45 connectors, 300 to 921600 bps
SEL-3390S8 PCIe x1 Expansion Cards: As many as 18 additional
EIA-232/422/485 ports, RJ45 connectors, 300 to 921600 bps*
HMIViewable remotely or via the local display*
Time Code Input/ OutputInput with supplied SEL-3390S8 Expansion Card, RJ45 connector, demodulated IRIG-B TTL-compatible
Power Supply125/250 Vdc or 120/240 Vac; 50/60 Hz
Dual power supplies*
Operating
Temperature
Range		i7-3555LE Dual Core: –40°C to +75°C (–40 to +167°F) i7-3612QE Quad Core: –40°C to +60°C (–40 to +140°F)
Weight9.072 kg (20 lb)
