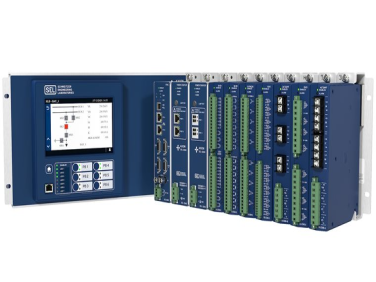

SEL-2240 Axion

  • NG # 03847-HW-SEL-016

The SEL-2240 Axion is a fully integrated, modular input/output (I/O) and control solution for utility and industrial applications, including use as a remote terminal unit (RTU) or ultrarugged programmable logic controller (PLC). With an optional 7-inch color touchscreen display, the Axion is also ideal for application as a bay control unit.

Manufactured By :
SEL
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Axion combines the communications, built-in security, and IEC 61131 logic engine of the SEL Real-Time Automation Controller (RTAC) family with a durable suite of I/O modules that provide high-speed, deterministic control performance over an EtherCAT network. The SEL-3530-4, SEL-3555, SEL-3560S, and SEL-3560E RTACs and SEL-2241 RTAC Module can all operate as the CPU for an Axion platform. For more information about the RTAC automation platform, its applications, and other available models

Specification

  • Real-Time Automation Controller (RTAC) with Modular I/O
  • Complete Bay Control and Monitoring
  • RTU and Programmable Automation Controller (PAC) in a Single System
  • Synchronized Current and Voltage Measurements
  • Top-of-the-Second Synchronized Measurements
  • Modular Phasor Measurement Unit
  • Simple Setup With acSELerator RTAC Software
  • Advanced User Authentication and System Security
  • Deterministic I/O Performance
