SEL RadioRANGER Underground Wireless Fault Indication System

  • NG # 01871-HW-SEL-002

The RadioRANGER solution significantly minimizes the necessity of accessing vaults to retrieve faulted circuit indicator (FCI) status. This not only reduces fault-locating time but also enhances the safety of utility personnel.

Manufactured By :
SEL
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

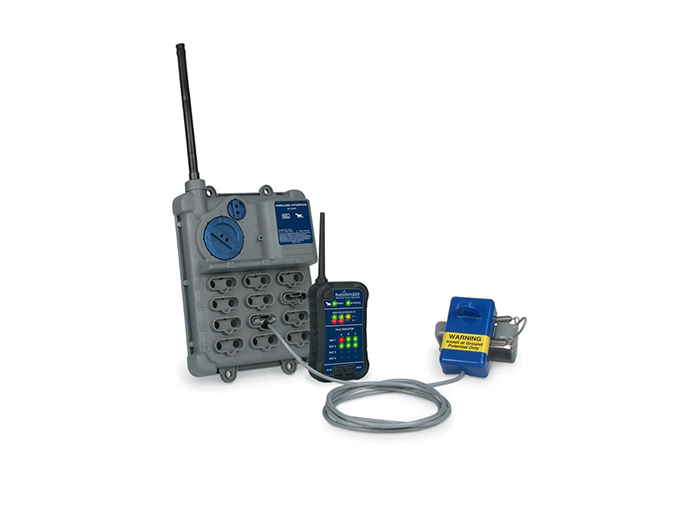

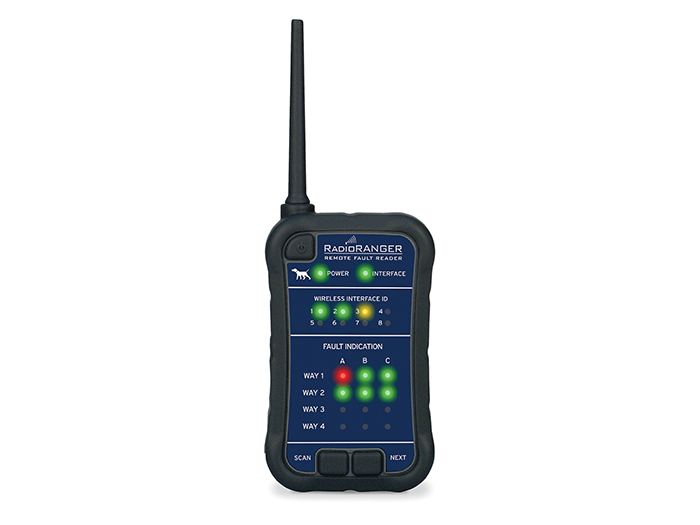

SEL fault indicators equipped with magnetic RadioRANGER Interface Probes communicate their status to an SEL-8300 RadioRANGER Wireless Interface. Utility personnel can quickly and safely retrieve subsurface FCI status, at street level, through wireless communication between the SEL-8300 and the handheld SEL-8310 RadioRANGER Remote Fault Reader. Two-way communications link prevents ambiguity by transmitting both faulted (tripped) and normal (reset) status information.

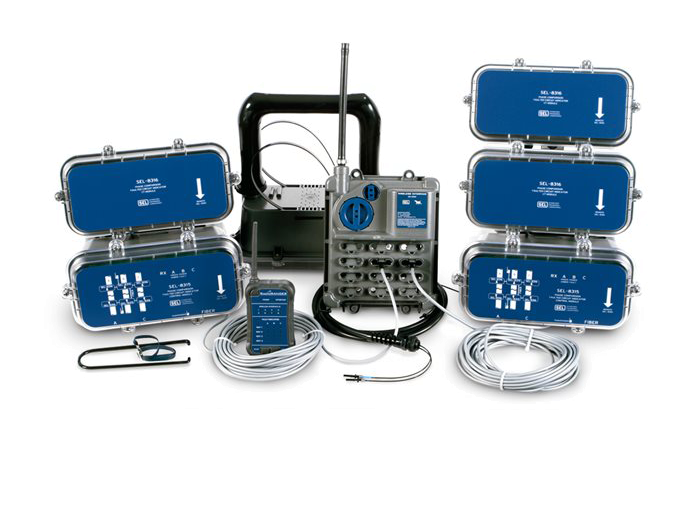

The IP68-rated SEL-8300 and waterproof interconnection system (rated to 15 feet of submersion) ensure environmental integrity for vault applications. Connect up to 12 SEL fault indicators equipped with magnetic RadioRANGER Interface Probes to the SEL-8300. The rugged SEL-8310 provides the ID of nearby SEL-8300 Wireless Interfaces as well as phase and way of the fault path. Maximize application efficiency using the modular and scalable system in a variety of vault configurations.

Specification

  • Simple, street-level fault indicator status retrieval reduces the need for fault-finding crews to remove utility access covers and enter vaults.
  • Multiple IDs allow the crew to easily identify the vault, way, and phase on which the fault occurred.
  • IP68-rated SEL-8300 and waterproof interconnection system (rated to 15 feet submersion) ensure environmental integrity required for vault applications.
  • SEL-8310 displays SEL-8300 system health and fault indicator status.
  • Two-way communications link prevents ambiguity by transmitting both tripped and reset fault indicator information. Users can retrieve SEL-8300 and fault indicator status at any time.

CATALOGS

Data Sheet
