Allen Bradley Temperature Monitoring Relay, DPST, DIN Rail

  • NG # 02727-HW-ALBR-066

  • MF # 817-E1

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

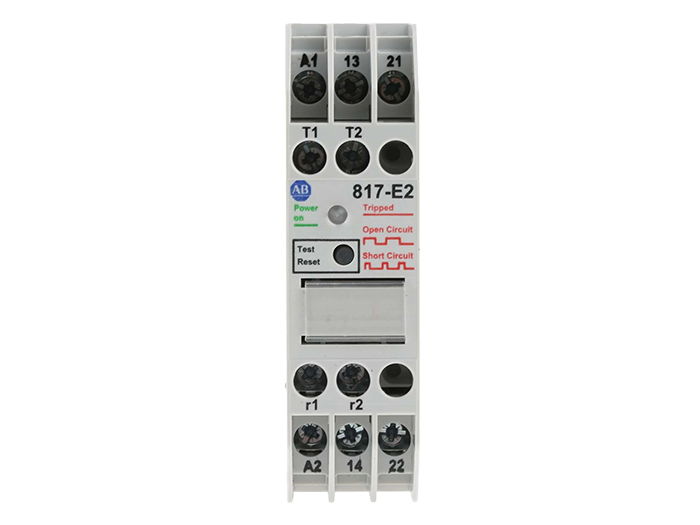

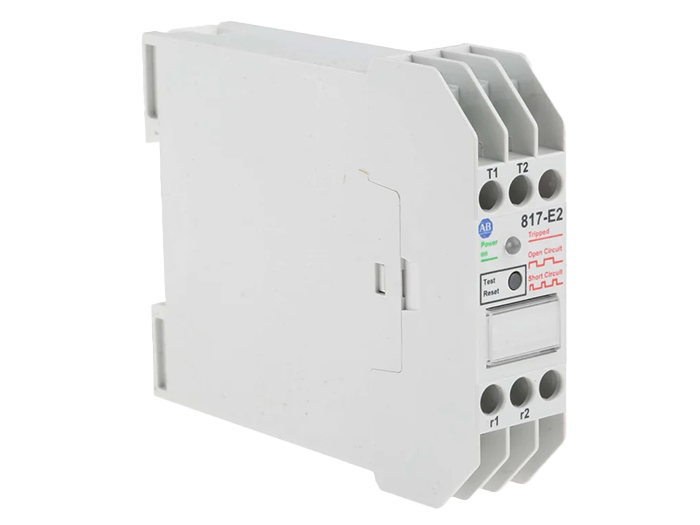

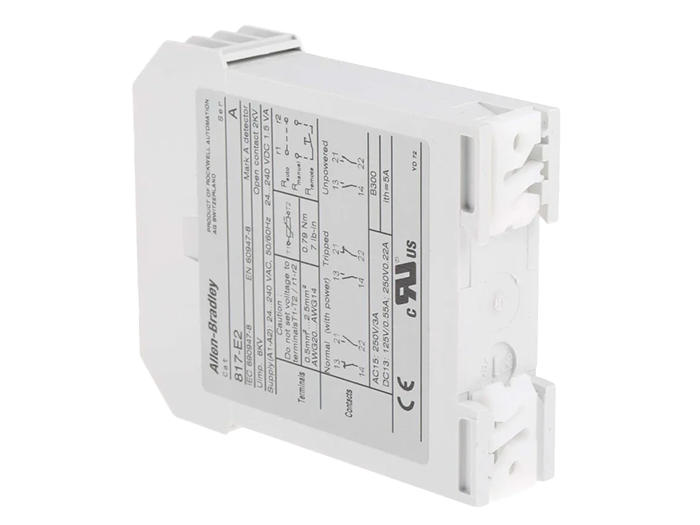

Allen-Bradley 817-E Range


Thermistor Protection Relays offer protective functions that are easily added and applied to motor control circuits. Typical applications include VFD Controlled Motors, Transformers, Bearings and Compressors.


Monitors over temperature
Connection of up to six PTC thermistors in series
Open and short circuit detection
Short circuit protected signal input
Status indication LED’s
No settings necessary
Compact 22.5mm DIN rail mount housing
Two versions available: Type E1, temperature protection, automatic reset. Type E2, temperature protection, status storage, auto, manual and remote reset options


Approvals

CE, cULus Listed

Allen Bradley Auto Temperature Monitoring Relay, 240V AC/DC, 89mm Height - 817-E1


Detect overheating in your industrial control systems with this temperature relay from Rockwell Automation’s Allen Bradley range. An internal alarm and LED (light-emitting diode) indicators warn you if your system becomes too hot, alerting you to open and short circuits. The unit's DPST (double pole, single throw) contact configuration lets you switch live and neutral circuit connectors off and on simultaneously. This gives you full control over the relay system for safety and ease of operation.


• 24 to 240V AC/DC supply voltage range for high-energy industrial systems
• Wide operating temperature range of -25°C to +60°C for use in harsh environments
• Fitted with LED (light-emitting diode) bulbs that are energy-efficient and long-lasting
• Compact 22.5mm DIN rail mount housing for simple installation in small spaces


Standards and Certifications


• BS EN (British Standards European Norm Electrostatic Control Standards)
• ANSI/ESD (American National Standards Institute/Electrostatic Discharge Standards)
• UL (Underwriters' Laboratories)
• CE (Conformitè Europëenne)


Where can I use this relay?


You can use this relay in motor-control circuits, including transformers, bearings and compressor systems, to monitor potentially dangerous temperature changes.

Specification

Monitoring ApplicationTemperature
Contact ConfigurationDPST
Mounting TypeDIN Rail
Temperature SensitivityOvertemperature
Series817
Maximum Operating Temperature+60°C
Width22.5mm
Height89mm
Length98.8mm
Dimensions98.8 x 22.5 x 89mm
Minimum Operating Temperature-25°C
Operating Temperature Range+60°C
Standards MetCE, CSA, UL
