Allen Bradley Guardmaster 440-R Series Output Module, 0 Inputs, 5 Outputs, 24 V dc, 4NO/1NC

  • NG # 02762-HW-ALBR-101

  • MF # 440R-EM4R2

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

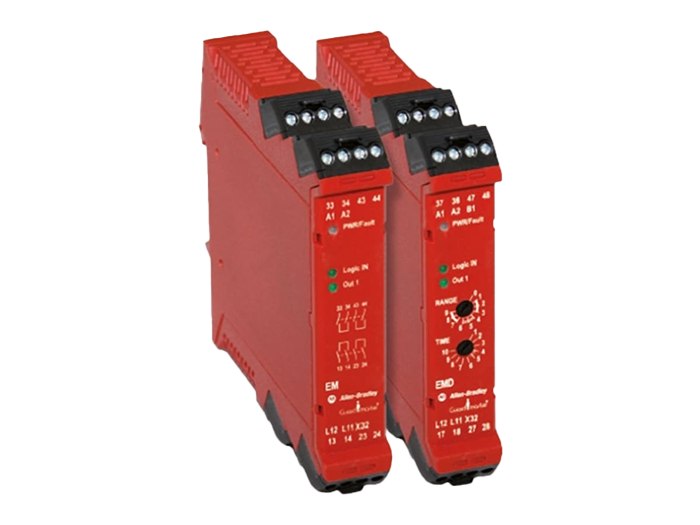

EM/EMD, Safety Relay Expansion Module


Easily add 4 N.C. instantaneous (EM) or delayed (EMD) outputs to a system
Single wire safe connection expands system without using any outputs of base module
Self-monitoring outputs
Time delay configured from 0-300 s
Timer functions include: on delay, off delay and jogging
Can replace the following Guardmaster safety relays: MSR132E, MSR132ED


Allen Bradley Guardmaster Expansion Module Relay


The Allen Bradley Guardmaster 440-R series is a safety relay expansion module with a supply voltage of 24VDC. It has 4NO instantaneous outputs and 1PNP auxiliary output. The functionality of 2 standard safety relays can be achieved in one dual input (DI) device, allowing the connection of two dual-channel input devices into one safety relay. The single-wire safety connection simplifies cascading and expanding safety functions by linking relays with a single-wire connection. A dynamic signal from device to device provides a linkage in accordance with SIL 3 and PLe, allowing easy addition of extra I/O that can be configured with simple logic combinations. Also, ’and/or’ logic can be configured simply in a single relay or through a combination of relays via a single-wire connection.


Features and Benefits


Single wire safe connection expands the system without using any outputs of the base module
Self-monitoring outputs
MTTFd is 190 years
PFH is 1.81 x 10-9
Time delay configured from 0 second to 300 seconds
Timer functions includes on delay, off delay, and jogging


Certifications


IEC 60204-1
EN ISO 13849-1
EN ISO 12100
IEC 61508
CE certified
UL listed
TUV certified

Specification

RangeGuardmaster
Series440-R
TypeOutput Module
For Use With440R MSR100
Supply Voltage24 V dc
Normal State Configuration4NO/1NC
Number of Inputs0
InterfaceEthernet
Number of Outputs5
Mounting StyleDIN Rail
Terminal TypeScrew
Dimensions119.4 x 22.5 x 113.6 mm
