Allen Bradley Guardmaster 440-R Series Input/Output Module, 1 Inputs, 6 Outputs, 24 V dc, 4NO/2NC

  • NG # 02692-HW-ALBR-031

  • MF # 440R-E23097

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

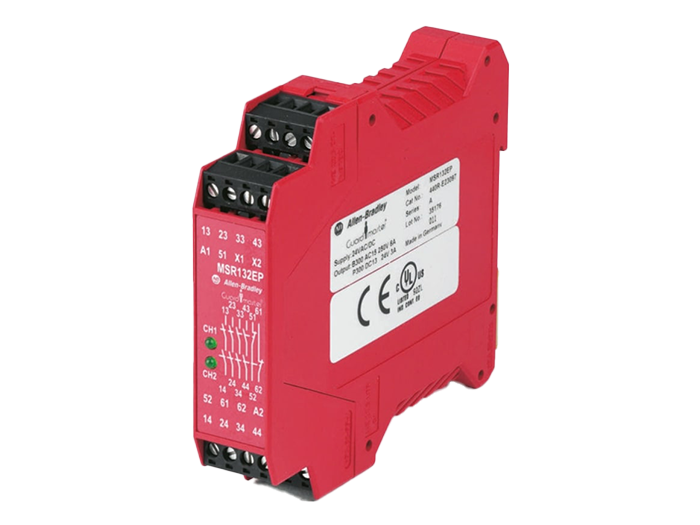

Minotuar MSR132E Expansion Unit


Designed to be an expansion relay for use with the Minotaur safety relays. Typically used in safety system applications where additional output switching connections are needed to help shut down a manufacturing process, properly and safely.
Can be connected as a single channel (1 N/C) or dual channel (2 N/C) input configuration.


Safety Category 4/3 per EN 954-1
Stop Category 0 or 1
4 safety contacts NO
2 auxiliary contacts NC
1 monitoring contact NC
Single channel input

Specification

RangeMinotaur
Series440-R
TypeInput/Output Module
For Use With440R MSR100
Supply Voltage24 V dc
Normal State Configuration4NO/2NC
Number of Inputs1
Number of Outputs6
Power Rating1.5 W
Mounting StyleDIN Rail
Dimensions99 x 22.5 x 114.5 mm
Terminal TypeScrew
