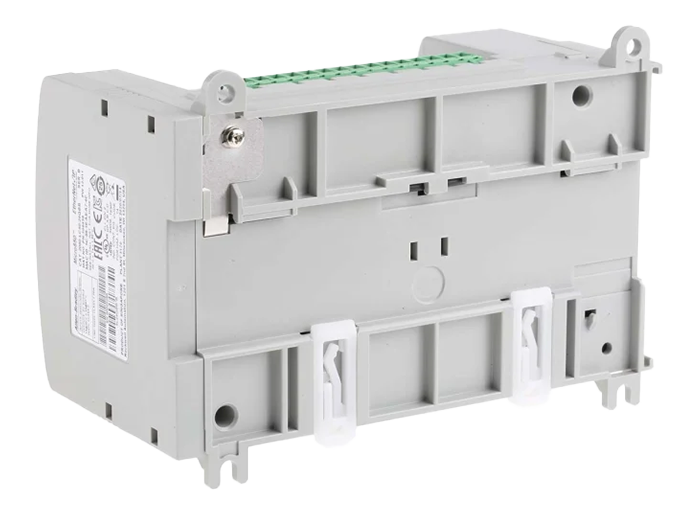

Allen Bradley Micro850 Series PLC CPU for Use with Micro800 Series, Relay Output, 14-Input, AC Input

  • NG # 02688-HW-ALBR-027

  • MF # 2080-LC50-24AWB

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Allen Bradley Micro850 Programmable Logic Controller


Experience superior I/O performance, customisation, and versatility with the Micro850TM Programmable Logic Controller by Allen Bradley, designed to be the leading controller of the Micro800 family.


These expandable controllers are specially designed to handle larger, stand-alone machine control applications which require greater I/O capabilities and flexible communications. They feature space-saving Plug-in, Expansion I/O modules, and removable terminal blocks for enhanced convenience. These programmable controllers are also equipped with the same form factor, Plug-in support, instruction/data size and embedded motion capabilities as the Micro830 devices. Micro850 PLC’s include extra communication connection options through an embedded 10/100 Base-T Ethernet port. They are expandable up to a maximum of 132 digital I/O points to give you optimal performance and functionality. For ease-of-installation Micro800 system control devices share common software and accessories.


Features and Benefits:


• Offers 24-point and 48-point controllers to suit your PLC system requirements
• Provides fast, reliable embedded communications via USB programming port and RS-232/485
• Communicates via EtherNet/IP (server mode only)
• Has built-in motion capabilities by supporting as many as three axes with Pulse Train Outputs (PTO)
• Several Expansion I/O modules are also available for greater application flexibility
• 100 kHz speed high-speed counter (HSC) inputs included on 24Vdc versions only


Software:


The Micro850 PLC’s use Connected Components Workbench programming software, which is free to download. This software provides controller programming, device configuration and data sharing with the HMI editor for PanelView Component operator products. The software also supports three standard IEC programming languages: ladder diagram, function block diagram and structured text. Password protection is supported for all Micro800 programmable controllers, ensuring a higher level of security.

Specification

Manufacturer SeriesMicro850
Number of Inputs14
Output TypeRelay
For Use WithMicro800 Series
Input TypeAC
Number of Digital Inputs10
Voltage Category24 V dc
Number of Outputs10
Number of Digital Outputs14
Network TypeEthernet, USB
InterfaceEthernet
Length158mm
Maximum Operating Temperature+65°C
Mounting TypeDIN Rail
Number of Communication Ports2
Minimum Operating Temperature-20°C
Dimensions158 x 90 x 80 mm
Depth80mm
Output Current16 mA
Communication Port TypeRS232, RS485, Serial
Width90mm
