3M DBI SALA 2103670 Permanent U-bolt Roof Anchor with Flashing and Cap, Installs Up To 2x8 Wood Frame Structures

NG # 0854-HW-3M-109
MF # 2103670

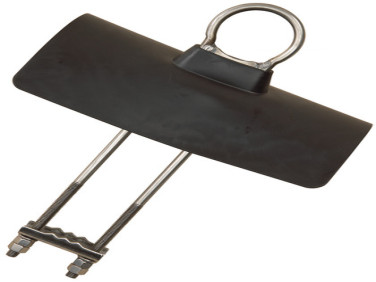

The 3M DBI-SALA 2103670 Permanent U-Bolt Roof Anchor with Flashing and Cap is a fixed fall-protection anchorage connector designed for installation on wood-framed roof structures such as rafters, trusses, and other compatible structural members up to 2 × 8 inches. It provides a permanent attachment point for a compatible personal fall arrest or restraint system.

Manufactured By :

3M

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

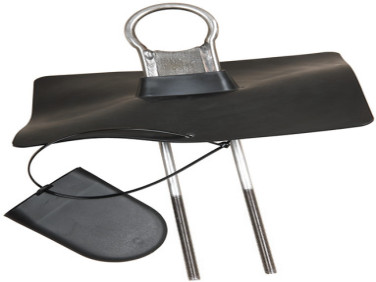

The anchor features an integral stainless-steel D-ring, corrosion-resistant stainless-steel construction, and a U-bolt/clamp installation method. The included flashing is designed to help prevent water leakage around the roof penetration, while the weather-tight cap protects the D-ring and helps seal the assembly from the elements. Its compact and lightweight design makes it suitable for residential and commercial wood-frame roofing applications.

Specification

Specification	Details
Manufacturer	3M
Brand	DBI-SALA®
Model / Mfg. No.	2103670
Product Type	Permanent Roof Anchorage Connector
Anchor Style	U-Bolt Roof Anchor
Installation Type	Permanent
Attachment Method	U-bolt / clamp
Compatible Structure	Wood roof framing
Maximum Wood Member Size	Up to 2 × 8 in.
Typical Attachment	Rafter, truss, joist or compatible wood member
Tie-Off Point	Integral stainless-steel D-ring
Construction	Corrosion-resistant stainless steel
Flashing	Included
D-Ring Cap	Weather-tight cap included
Weight	Approx. 2 lb. (0.9 kg)
Dimensions	Approx. 3 × 40 × 13.9 in.
User Capacity	310 lb. (141 kg), including user and equipment
Installation	Bolt/clamp
Product Style	Fixed
Standards / Compliance	OSHA requirements applicable to the product
Typical Application	Roof fall arrest and restraint
