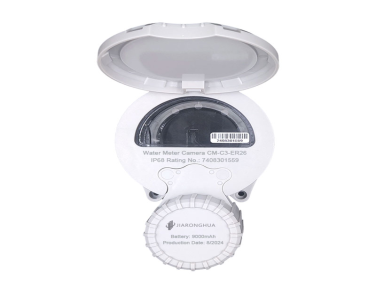

4G Automatic Meter Reading Camera

  • NG # 04265-HW-JRH-004

The 4G Automatic Meter Reading Camera from Shenzhen JiaRongHua Technology Co., Ltd. is an intelligent retrofit solution designed to convert traditional mechanical water meters into smart AMR systems. It uses an integrated camera and 4G communication to capture and transmit meter readings remotely, eliminating the need for manual data collection and reducing operational costs.

Manufactured By :
JiaRongHua
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The 4G Automatic Meter Reading Camera is a practical and cost-effective solution for upgrading existing water metering infrastructure without replacing installed meters. It is especially suitable for residential buildings, apartments, schools, and industrial facilities where conventional mechanical meters are still in use. By mounting the device directly onto existing meters, it captures meter readings through image-based monitoring and transmits the data via 4G networks for remote access and management.

This system simplifies the transition to automated meter reading (AMR) by minimizing installation complexity and infrastructure changes. It supports real-time or scheduled data transmission, enabling efficient monitoring, billing, and analysis. Compared to traditional manual reading methods, the device improves accuracy, reduces labor requirements, and enhances operational efficiency. Additionally, its low power consumption and optimized communication technology ensure stable performance with extended battery life.

Specification

  • Battery Capacity: 9000 mAh
  • Camera Resolution: 80,000-pixel HD camera
  • Communication Technology: 4G LTE Cat.1
  • Waterproof Rating: IP68
  • Suitable Meter Size: DN50 – DN300 water meters
  • Processor: Industrial-grade ARM Cortex-M0 MCU
  • Network Sensitivity: -104 dBm
  • SIM Type: SMD card
  • Voltage Input Range: 3.0 – 3.6 V
  • Maximum Pulse Current: 200 mA
  • Average Working Current: 30 mA
  • Standby Current: 4 µA
  • Bluetooth: BLE 5.0
  • Max Transmission Power: 23 dBm
  • Operating Temperature: -10°C to +60°C

Other JiaRongHua Products

STS Prepaid Water Meter (integrated)
JiaRongHua Industrial Tools & Accessories 04268-HW-JRH-007

LoRaWAN Ultrasonic Smart Water Meter
JiaRongHua Industrial Tools & Accessories 04271-HW-JRH-010

Photoelectric Direct Reading Remote transmission Water Meter
JiaRongHua Industrial Tools & Accessories 04281-HW-JRH-020

Camera Smart Water Meter
JiaRongHua Industrial Tools & Accessories 04267-HW-JRH-006

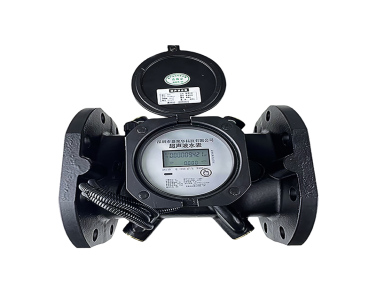

Large caliber ultrasonic intelligent water meter DN50-DN400
JiaRongHua Industrial Tools & Accessories 04276-HW-JRH-015

LoRa Smart Water Meter-No Valve
JiaRongHua Industrial Tools & Accessories 04270-HW-JRH-009

Volumetric Water Meter
JiaRongHua Industrial Tools & Accessories 04266-HW-JRH-005

Irrigation Water Meter for Farmland
JiaRongHua Industrial Tools & Accessories 04275-HW-JRH-014

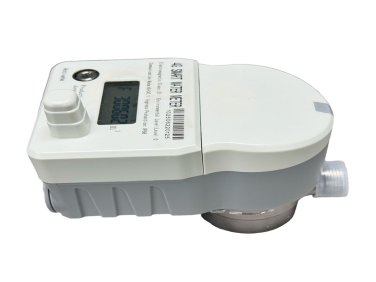

4G Valve Controlled Water Meter
JiaRongHua Industrial Tools & Accessories 04273-HW-JRH-012

STS prepaid water meter (split type)
JiaRongHua Industrial Tools & Accessories 04262-HW-JRH-001

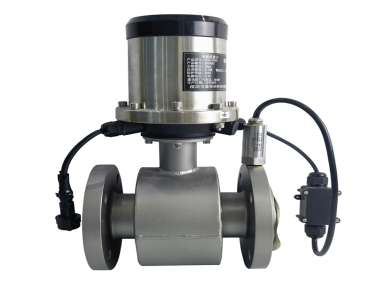

Electromagnetic Flowmeter
JiaRongHua Industrial Tools & Accessories 04274-HW-JRH-013

IC Card Prepaid Water Meter
JiaRongHua Industrial Tools & Accessories 04269-HW-JRH-008

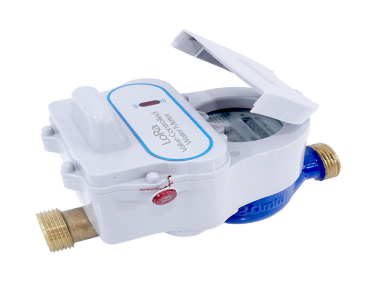

LoRa Valve-Controlled Water Meter
JiaRongHua Industrial Tools & Accessories 04277-HW-JRH-016

NB-IoT Water Meter
JiaRongHua Industrial Tools & Accessories 04264-HW-JRH-003

LoraWan Ultrasonic Water Meter
JiaRongHua Industrial Tools & Accessories 04263-HW-JRH-002

4G Direct Drinking Water Meter
JiaRongHua Industrial Tools & Accessories 04272-HW-JRH-011

LoRaWAN Single-jet Water Meter
JiaRongHua Industrial Tools & Accessories 04278-HW-JRH-017

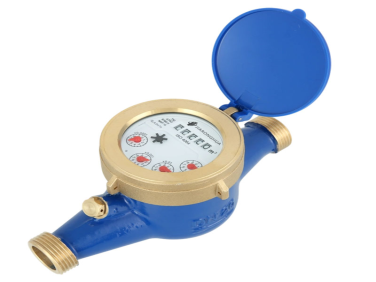

Multi-Jet Dry Type Water Meter
