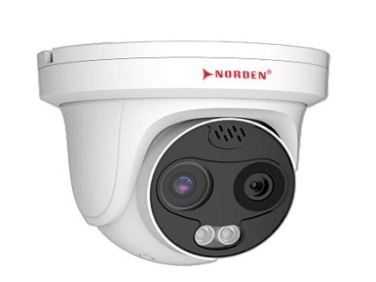

The ENC-HCD7F-35R-35 is a 4MP IP dual-sensor thermal compact dome camera featuring a 256×192 VOx thermal detector and a 4MP visible CMOS sensor. It offers precise temperature detection, advanced behavior analytics, and multiple smart features for reliable security monitoring in all environments. With PoE support, SD card storage, IP67 protection, and IK10 vandal resistance, it is ideal for industrial, commercial, and perimeter surveillance.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe ENC-HCD7F-35R-35 thermal dome camera combines thermal and visible imaging for enhanced surveillance and temperature monitoring. Its uncooled VOx thermal sensor detects temperature variations and identifies human, vehicle, and fire sources with high accuracy (±2°C or ±2%). The 4MP visible sensor ensures crisp imaging with 120 dB WDR and smart IR up to 35 m. Integrated smart analytics include intrusion detection, people counting, temperature alarms, and flame/smoke recognition. With H.265 compression, ONVIF compatibility, PoE power, and up to 512 GB SD storage, this camera delivers efficient, high-performance monitoring for demanding applications.
| MODEL | Model No. | ENC-HCD7F-35R-35 |
| Type | 4MP THERMAL DOME CAMERA | |
| THERMAL CAMERA | Detector Type | Uncooled VOx Micro Bolometer |
| Effective Pixels | 256×192 and Image can be scaled up to 704x576 | |
| Pixel Size | 12 μm | |
| Thermal Sensitivity | ≤50 mK | |
| Spectral Range | 8 ~ 14 um | |
| Image Settings | Brightness , Sharpness, Contrast, Saturation, Mirror | |
| Color Palettes | White-Hot / Black-Hot / Rainbow / Ironbow etc. up to 17 modes | |
| Iris | Fixed IRIS | |
| THERMAL LENS | Lens | Fixed |
| Focus | Free Focus | |
| Focal Length | 3.5 mm | |
| F No | F1.0 | |
| Angle of View | 48.0°(H), 36.0°(V) | |
| Detection | Human(1.8mx0.5m) - 146 m, Vehicle(4.0mx1.5m) - 447m | |
| Recognition | Human(1.8mx0.5m) - 36 m, Vehicle(4.0mx1.5m) - 112 m | |
| Identification | Human(1.8mx0.5m) - 18 m, Vehicle(4.0mx1.5m) - 56 m | |
| Fire Detection | Fire(0.2mx0.2m) - 41.7 m | |
| VISIBLE LENS | Image Sensor | 1/2.7" CMOS |
| Day / Night | IR Cut Filter with Auto Switch | |
| Max. Resolution | 2560x1440 | |
| Focal Length | 4 mm Lens | |
| Focus Control | Fixed Lens | |
| Angle of View (H) | 92.0° | |
| Angle of View (V) | 46.0° | |
| Angle of View (D) | 102.8° | |
| Max. Aperture | F1.6 | |
| Digital Zoom | 16x | |
| Electronic Shutter | 1s ~ 1/100,000s, Auto / Manual | |
| Min. Illumination | Color: 0.001 lux @ F1.2, B/W: 0.0003 lux, 0 lux with IR | |
| AGC | Auto / Manual | |
| Digital Noise Reduction | 2D & 3D DNR, Auto / Manual | |
| S/N Ratio | ≥55dB | |
| WDR | 120 dB | |
| Strobe Light | Supported | |
| Smart IR | Up to 35 m | |
| Wavelength | 850 nm | |
| Detection | 85.4 m | |
| Observation | 34.2 m | |
| Recognition | 17.1 m | |
| Identification | 8.5 m | |
| VIDEO | Video Compression | Enhanced (H.265, H.264), H.265, H.264, MJPEG |
| Frame Rate | Main Stream: Thermal: (704×576) @ 25fps; Visible: (2560×1440, 2304×1296, 1920×1080, 1280×720) @ 25fps Sub Stream: Thermal: (704×576, 352×288, 256×192) @ 25fps; Visible: (704×576, 640×480) @ 25fps | |
| Stream Settings | i-Frame, PAL/NTSC, Frame Rate | |
| Bitrate Type | CBR, VBR | |
| Video Bit Rate | Thermal: 100Kbps ~ 3Mbps Visible: 100Kbps ~ 12Mbps | |
| Image Settings | Brightness, Contrast, Saturation, Sharpness, Day/Night (Color, Mono, Auto), Flip/Mirror/Rotation, Multiple Scene & Profile | |
| White Balance | Auto, Day/Night, Tungsten, Fluorescent, Shadow, Manual | |
| DVE Image Enhance | Supported | |
| HLC | Supported | |
| BLC | Supported | |
| Defog | Supported | |
| OSD | Up to 6 regions | |
| OSD Type | Title, Week, Date, Time, Text with different colors and adaptable sizes (Small / Medium / Big), Image overlay | |
| ROI | Up to 8 regions | |
| Privacy Mask | Up to 5 regions | |
| AUDIO | Audio Compression | G.711A , G.711U, RAW_PCM |
| Audio Bitrate | 64 kbps, 128 kbps | |
| Audio I/O | 1/1 | |
| Built-in Mic | Supported | |
| SMART | Behaviour Detection | Thermal/Visible: Intrusion (Perimeter), Crossline (Tripwire), Double Crossline (Double Tripwire) |
| Intelligent Identification | Thermal/Visible: Loitering, Region Entry / Exit Detection Thermal: Flame Point Detection, Smoker Detection Visible: Smoke Detection, Flame Detection | |
| Statistical Analysis | Thermal/Visible: People Counting, Wrong Way Detection, Human and Vehicle Detection, Temperature Detection | |
| Alarm Management | Motion Detection, Disk Full Alarm, Temperature Alarm, Input / Output Alarm, Network Alarm, Flashing Light and Horn warning | |
| Alarm Notification | E-mail (Notification and Snapshot), HTTP (Alarm Icon), FTP (Snapshot and Recording), SD Card (Recording) | |
| TEMPERATURE | Detection Mode | Area, Spot, Line (Total 20 Rules - 1 Full Screen and 19 others) |
| Alarm | Over / Difference Temperature Alarm | |
| Accuracy | ±2℃ / ±2% | |
| Response Time | ≤ 30ms | |
| Measurement range | -20°C ~ 150°C (-4°F ~ 302°F) | |
| INTERFACE | Protocols | TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTCP, RTSP, PPPoE, NTP, UPnP, SMTP (SSL/TLS), IGMP, 802.1x, QoS, Unicast, SNMP, ARP |
| Security | AES 128/256 Video Encryption, IP Filter, User Authentication (Multiple Privilege Level), HTTPS Authentication, Digest Authentication, User Access Log | |
| Compatibility | ONVIF Profile (S, G, T, M), CGI/SDK | |
| Network | 1x RJ45 10M/100M Self Adaptive Ethernet Port | |
| Serial Interface | 1xRS485 | |
| Edge Storage | SD card slot, up to 512 GB | |
| Alarm I/O | 1/1 | |
| Built-in Speaker | Supported | |
| Max User | 32 | |
| Client Application | EyeGuard | |
| GENERAL | Power Supply | 12V DC/24V DC, PoE (IEEE 802.3af) |
| Max. Power Consumption | ≤10 W | |
| Working Temperature | -40 °C ~ 65 °C | |
| Working Humidity | ≤95% RH | |
| Ingress Protection | IP67 | |
| Vandal Resistant | IK10 (Housing) | |
| Surge Protection | TVS4000V | |
| Reset Button | Supported | |
| Dimensions | Φ140 × 117.7 mm | |
| Weight | 1.03 Kg |
