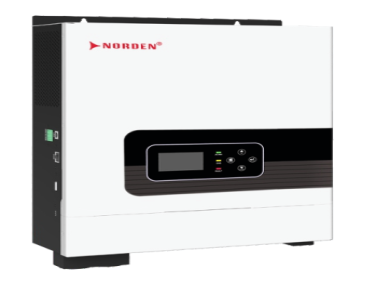

NORDEN OPTIMUM SERIES 8-12KW HYBRID SOLAR INVERTER

  • NG # 006002-HW-Norden-002

The hybrid solar inverter optimizes energy usage by prioritizing solar power, supplementing with battery storage, and drawing from the grid only when necessary. It provides a reliable, flexible, and energy-efficient power solution for homes, small commercial buildings, and rural enterprises.

Manufactured By :
Norden Communication
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Designed for efficiency and reliability, the hybrid solar inverter intelligently manages energy from solar panels, batteries, and the utility grid. It ensures maximum use of renewable solar energy while maintaining uninterrupted power supply through battery support and minimal grid dependency. Ideal for larger residences, small businesses, and rural operations, it delivers consistent, cost-effective electricity, reduces energy costs, and enhances energy independence.

Specification

Model NPS-0848HNPS-1048HNPS-1248H
 Rated Power 8000VA/8000W10000VA/10000W12000VA/12000W
Surge Power 16000W20000W24000W
InputVoltage230VAC
Selectable Voltage Range
 		170~280VAC(UPS)/90-280VAC(APL)/184~253VAC(VDE)

Frequency Range
 		50Hz/60Hz (Auto sensing)

OutputWaveformPure sine wave

AC Voltage Regulation (Batt.Mode)
 		230VAC±5% (Setting)

Inverter Efficiency (Peak)
 		92%

 Transfer Time10ms(UPS/VDE4105)/20ms(APL)
BatteryNormal voltage 48VDC
Floating Charge Voltage 54.8VDC
Overcharge Protection 60VDC
Solar Charger & AC ChargerMaximum PV Array Open Circuit Voltage500VDC

Charging Algorithm
 		3-Step (Flooded Battery, AGM/GEL/LEAD Battery), 4-Step (Li)

Maximum PV Array Power
 		4000W*2
 		5000W*2
 		6000W*2

PV Array MPPT Voltage Range90-430VDC
Maximum Solar Charge Current120A150A
Maximum AC Charge Current120A150A
Maximum Charge Current120A150A
Physical featuresDimension (W*H*D) (mm)322*486 134
 Net Weight (kg) 12.5
System speci cationHumidity
 		5% to 95% Relative humidity (Non-condensing)

Operation temperature range
 		0°C to 50°C

Storage temperature
 		-15°C to 60°C

Certi cation and Standard
 		CE-EMC+LVD (EN6100-6-3:2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011) EN IEC62368-1:2020+A11:2020 CE-LVD (IEC62109-1:2010, EN IEC62109-2:2011)EN IEC62368-1:2018, EN IEC62109-1:2010, EN IEC62109-2:2011
