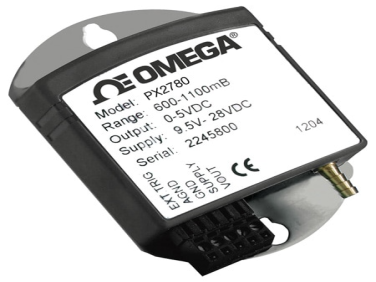

Barometric Pressure Transducers with Terminal Strip PX2780-600B5V

  • NG # 03884-HW-Omega-055

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This barometric pressure sensor delivers high accuracy (±0.4%) and excellent long-term stability (<±0.1 hPa/year), making it ideal for precise atmospheric pressure monitoring. It operates over a wide barometric range (600–1100 mBar) and in extreme temperatures from -40 °C to 60 °C, with rapid response times under 100 ms.


Designed for reliability, it features a rugged housing with a mounting plate, barbed fitting process connection (1/8 in), and removable screw terminal for easy installation and wiring. The sensor offers a voltage output of 0–5 V and supports a broad supply range of 9.5–28 Vdc with minimal power consumption, including a low-power sleep mode.

Specification

Accuracy± 0.4 %
Accuracy Class> 0.25%
Burst Pressure29 psi Maximum
Compensated Temperature, Max60 °C
Compensated Temperature, Min-40 °C
Electrical ConnectionRemovable Screw Terminal
Electrical Output0 to 5 V
Measurement Pressure TypeBarometric
Measurement Pressure, Max1100 mBar
Measurement Pressure, Min600 mBar
Media CompatibilityAir, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen
MountingMounting plate
Operating Temperature, Max60 °C
Operating Temperature, Min-40 °C
Output Resistance<10 Ω
Output SignalVoltage
Process Connection Size1/8 in
Process Connection TypeBarbed Fitting
Proof PressureUp to 1500 hpa
Resolution0.1 hPa
Response Time<100 ms
Sensitivity Effect<± 0.09% full scale/50°C
Span Setting Adjustable Range± 5 mV
Stability<± 0.1
Stability NoteLong Term Stability: <± 0.1 hPa (mb)/year
Storage Temperature, Max120 °C
Storage Temperature, Min-60 °C
Supply Power Note9.5 to 28 Vdc (3 mA operate mode, 1 µA sleep mode) 3- or 4-wire circuit
Supply Voltage9.5 to 28 Vdc
Thermal Effect on Span error, Max± 1% gage
Warm Up Time<1 sec
Warm-Up Shift<0.1 hPa (mb) maximum
Weight137 g
Zero Setting Adjustable Range± 5 mV
Zero/Balance Error<± 0.18% full scale/50°C
