NG # 02015-HW-Omega-002
MF # DPG101-015G
SKU # DPG101-015G

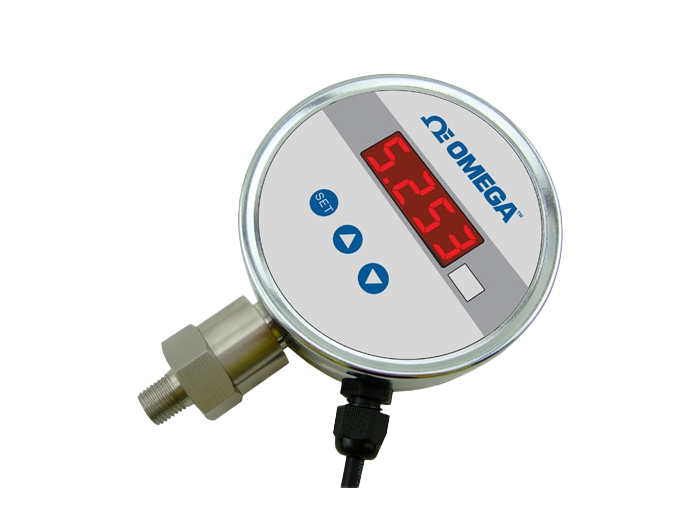

DPG101 is an electronic digital pressure gauge used to monitor hydraulic fluids. It monitors the pressure via the resistance measured on an isolation membrane.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteDPG101 is an electronic digital pressure gauge used to monitor hydraulic fluids. It monitors the pressure via the resistance measured on an isolation membrane. The output signal is amplified by a high-precision, low-temperature drift amplifier. The signal is then fed into a high accuracy A/D converter for the microprocessor to process and then show on the LED display.
This flexible, simple to operate digital pressure gauge is safe, reliable, and easy to maintain. The DPG101 is widely used in hydro-power, water, petroleum, chemical, mechanical, hydraulic, and other industries.
4-Digit High Resolution LED Digital Display. All Stainless-Steel Construction. Gage, Absolute, Compound, and Vacuum Ranges Available. 0.25% FS Terminal Point Accuracy
| Display Units | Gauge can be factory scaled to any engineering unit such as psi, kPa, bar, mbar, inHg, inH2O, mmHg, ftH2O, torr, kg/cm3 |
| Measuring Range | -0.1 to 35 MPa (-14.50 to 5000 psi) |
| Display Type | 4-digit LED |
| Accuracy | 0.25% FS for gauge pressure >5psi |
| Power | 85 to 265 Vac |
| Stability | <0.1% FS per year |
| Case Protection | IP65 |
| Operating Temperature | -30 to 80ºC (-22 to 176ºF) |
| Operating Humidity | <90% |
| Media Temperature Limits | -40 to 150ºC (-40 to 302ºF) [equip with cooling element accessory if media temperature is greater than 80ºC (176ºF)] |
| Process Connection | ¼" NPT, others consult Omega |
| Wetted Parts | 316 SS threads, NBR O-ring |
| Storage Temperature | -20 to 70ºC (-4 to 160ºF), less than 80% relative humidity |
AC Digital Pressure Gauge DataSheet
MM-Configurable Highly Configurable, High Accuracy, Custom Pressure Transducers
Rangeable Pressure Transmitters with Display PX3005-001GI
Configurable, High Accuracy Pressure Transducers PX419-001GI
Omega Link Wireless IIoT Smart Environmental Sensors
Compact, Low Pressure Transducers for Clean Gases PX142-030D5V
Omega Digital Pressure Gauge with Min/Max Readings & NEMA 4X Case
Omega High Accuracy, Digital Pressure Gauge with Output & NEMA 4X Case
HHP680-Series Basic Manometer for Ultra Low Pressure Ranges
Series-477AV Handheld Digital Manometer for Pressure, Flow & Velocity ± Calibration
HH42A-Series Ultra-High Accuracy and Resolution Digital Thermistor Thermometer
Series-477B Digital Manometers, 0-20 inH2O to 100 psi, ± 0.10% accuracy, backlight.
Omega Advanced Digital Pressure Gauge with NEMA 4X Case
HH25U-Series 1 Channel High Accuracy 0.1% Type K, J, T Thermocouple Meter

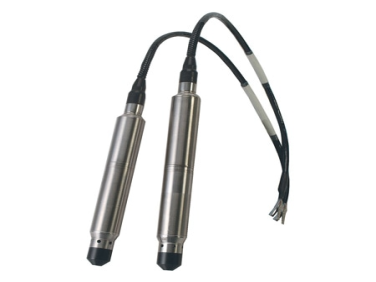

Submersible Pressure Transducers with 4 Output Options PX709GW-015GI
