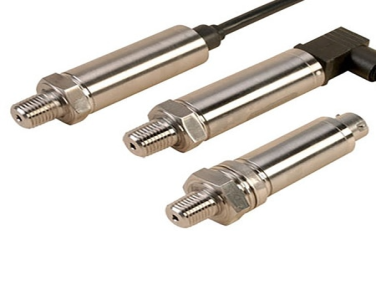

Get A QuoteThis is a high-accuracy gauge pressure sensor designed for precise measurement of low-pressure applications up to 1 psi. It features excellent linearity, hysteresis, and repeatability with an overall accuracy of ±0.08% BSL and long-term stability of ±0.1% FS. The sensor is suitable for harsh environments, with IP65-rated enclosure protection, 316L stainless steel wetted materials, and robust mechanical resilience including 50 g shock and 1 million pressure cycles.
| Accuracy | ± 0.08 % |
| Accuracy Class | < 0.1% |
| Accuracy Detail | (CombinedLinearity,Hysteresis and Repeatability):± 0.08% BSL maximum Compound ranges calibrated only in positive direction |
| Additional Features 1 | None |
| Bandwidth | DC to 1 kHz |
| Burst Pressure | 6x Full Scale |
| Compensated Temperature, Max | 85 °C |
| Compensated Temperature, Min | -17 °C |
| Compliance | RoHS 2 |
| Electrical Connection | DIN 43650 C (solenoid valve) |
| Electrical Output | 4 to 20 mA |
| Electrical Output Note | None |
| Enclosure Ratings | IP65 |
| Insulation Resistance | 100 MΩ @ 50 Vdc |
| Materials, Wetted | 316L Stainless Steel |
| Measurement Pressure Type | Gauge |
| Measurement Pressure, Max | 1 psi |
| Measurement Pressure, Min | 0 psi |
| Operating Temperature, Max | 115 °C |
| Operating Temperature, Min | -45 °C |
| Output Signal | Current |
| Pressure Cycles | 1 million, minimum |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT Male |
| Proof Pressure | Up to 1000 psi |
| Response Time | <1 ms |
| Shock | 50 g, 11 ms half-sine |
| Span Setting Adjustable Range | ± 0.5% FS typical 1% maximum (1% typical, 2% maximum for 2.5 psi and below). Calibrated in vertical direction with fitting down |
| Stability | ± 0.1% |
| Stability Note | Long Term Stability (1-Year): ± 0.1% FS typical |
| Supply Power Note | Supply Voltage: 9 to 30 Vdc maximum loop res Ω = (Vs-9)x50 [9 to 20 Vdc above 105°C (229°F)] |
| Supply Voltage | 9 to 30 Vdc |
| Thermal Effect on Span error, Max | ± 1.0% span |
| Thermal Effect on Zero error, Max | ± 1.0% span, ± 1.0% span |
| Vibration | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis |
| Weight | 200 g |
| Zero/Balance Error | ± 0.5% |
| Zero/Balance Error Note | ± 0.5% FS typical 1% maximum (1% typical, 2% maximum for 2.5 psi and below) |
