NG # 05680005-HW-FLEXIM-005

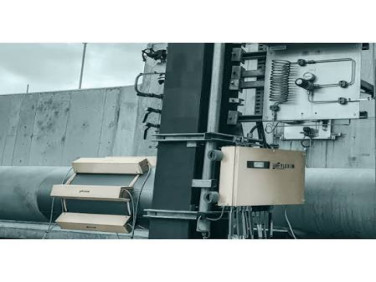

4-Beam Liquid Flow Meter – FLUXUS F736 provides high-precision, non-intrusive ultrasonic flow measurement for challenging installation conditions. Its four transducers create eight independent ultrasonic paths, averaging flow across multiple pipe planes to compensate for crossflow and other flow disturbances without process interruption or direct fluid contact.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe Flexim FLUXUS F736 combines advanced digital signal processing with four-beam ultrasonic measurement for reliable liquid flow monitoring where straight pipe runs are limited. Its synchronized channel averaging and integrated disturbance correction help compensate for inhomogeneous flow profiles, while temperature-compensated transducers maintain measurement stability. The clamp-on design requires no pipe modification, moving parts, or leak paths, making the meter suitable for retrofit installations. It supports bidirectional measurement, a flow velocity range of 0.01–25 m/s, and measurement uncertainty down to ±0.3% of reading ±0.005 m/s.
Fluid Type: All Liquids
Accuracy: Measuring System: ±0.3% of reading ±0.005 m/s (±0.02 ft/s); Measuring Point: ±1% of reading ±0.005 m/s (±0.02 ft/s)
Repeatability: 0.15% of reading ±0.005 m/s (±0.02 ft/s)
Flow Channels: Up to 4
Flow Velocity Range: 0.01–25 m/s (0.03–82 ft/s), depending on pipe diameter
Certifications/Approvals: FM Class I/Div. 2, ATEX/IECEx Zone 2
Power Supply: 100–230 VAC; 11–32 VDC
Pipe Size: 6–6500 mm (0.24–255.9 in.)
Pressure Range: —
Media Temperature Range: -40 to +200°C (-40 to +392°F); with WI: -200 to +630°C (-328 to +1166°F)
Output: 4–20 mA Active/Passive; 4–20 mA HART Active/Passive; Pulse/Frequency/Binary
Input: Temperature; 4–20 mA Active/Passive
Communication Protocol: Modbus RTU/TCP, BACnet MSTP/IP, PROFIBUS PA, FOUNDATION Fieldbus
