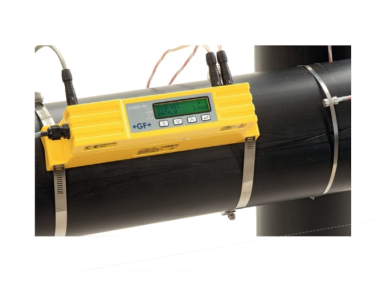

GF Signet U1000 UltraFlow Ultrasonic Heatmeter

  • NG # 04192-HW-GF-035

The GF Signet U1000 UltraFlow Ultrasonic Flow Sensor is a permanent/fixed clamp-on heatmeter/energy meter/BTU meter. Additionally to an ultrasonic flowmeter it is equipped with Pt100 temperature sensor to calculate the energy of a heat exchanging system.

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

It is very simple to install, clamp it on to the pipe, connect it to power and enter the pipe diameter. No expertise or special tools are required. The clamp on allows for easy install without process disruption. Compact, robust and reliable the U100 V2 Heatmeter is designed for long term use in industrial applications.

It is configured for pure water and can be used on PVDF, ABS, PVC, PP, PE,  PB-Instaflex, iron and steel pipes. Processes can be monitored directly by a higher-level system via 4-20mA, Modbus, pulse, or frequent output.

Specification

  • Flow range: 0.1 to 10 m/s
  • ±3% accuracy
  • ±0.5% of measured value repeatability
  • <500 ms response time
  • LCD display
  • Fixed clamp-on sensor
  • Compact integral design
