Honeywell SAIL SWITCH

  • NG # 01105-HW-HNWEL-131

  • SKU # 01105-HW-HNWEL-131

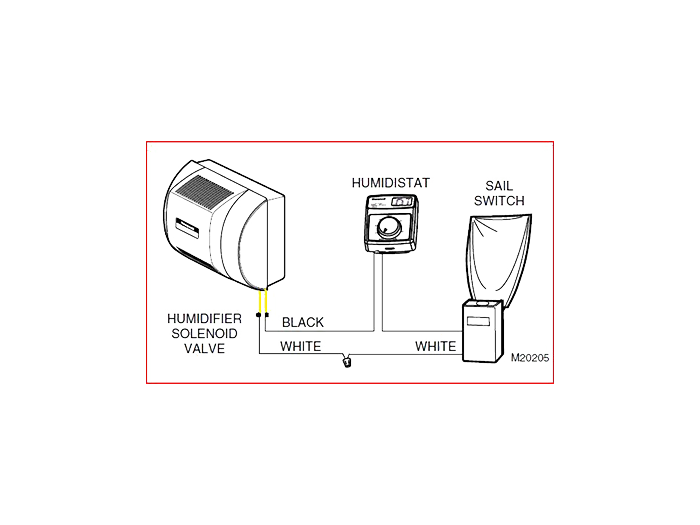

S437 Sail Switches react to air velocity in heating or warm air ducts, commonly employed in applications like farm crop dryers. Activating a 24V or line voltage burner control circuit occurs exclusively when the blower or fan achieves a pre-established air velocity.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

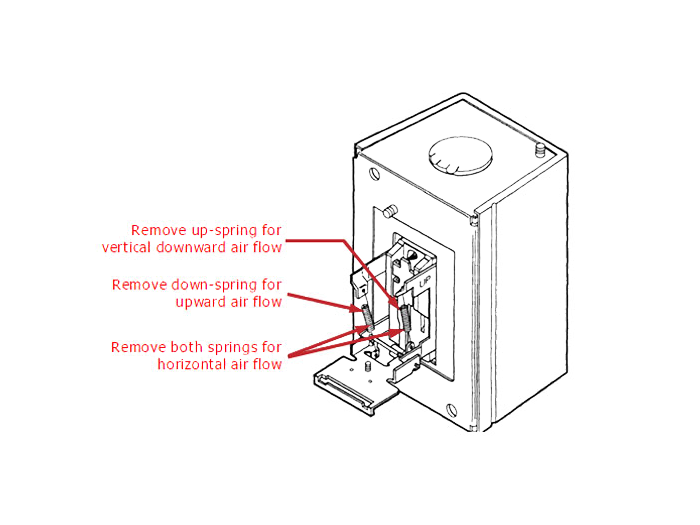

Micro Switch SPST snap switch is operated by metal sail inserted in an air stream. Sail can trimmed to one-half the original size to double the velocity required to close the snap switch contacts. Switch differential can be manually adjusted by turning a knurled knob on the snap switch. A conduit knockout is located on each end of the case for wiring convenience.

Specification

  • Maximum Operating Ambient Temperature : 150 degree Fahrenheit|66 degree Celsius
  • Brand : Honeywell BMS NA
  • Setpoint Device : Knob on the Snap Switch
  • Mounting Type : Horizontal inch
  • Includes : Case foot|Cover foot
