Pepperl+Fuchs Inductive sensor NBB4-12GM50-E2-V1

  • NG # 04153-HW-PEP-036

  • MF # NBB4-12GM50-E2-V1

The NBB4-12GM50-E2-V1 is a high-performance inductive proximity sensor designed for detecting metallic objects without physical contact. It provides a 4 mm sensing range, PNP normally-open output, and 3-wire DC operation, making it ideal for automation systems, manufacturing lines, and machine control applications. Its robust metal housing and high ingress protection ensure reliable operation in harsh environments.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

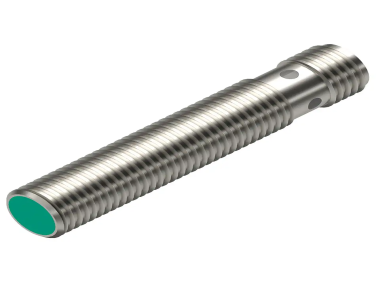

The NBB4-12GM50-E2-V1 inductive sensor is a compact cylindrical proximity sensor designed for reliable non-contact detection of metal objects in industrial automation applications. It features a 4 mm sensing distance with flush mounting capability, making it suitable for installations where space is limited and accurate detection is required. The sensor supports PNP output with normally open switching and operates within a 6–36 V DC voltage range, ensuring compatibility with a wide variety of control systems.

Built with a brass housing coated with white bronze and a PBT sensing face, the sensor offers strong durability and resistance to harsh industrial environments. Its IP65/IP66/IP67/IP68 protection ratings allow dependable performance even in dusty or wet conditions. With features such as reverse polarity protection, short-circuit protection, and LED switching indication, the device ensures safe operation and easy status monitoring. The wide temperature range from −40 °C to +85 °C further enhances its reliability in demanding industrial environments.

Specification

  • Product Type: Inductive proximity sensor
  • Model: NBB4-12GM50-E2-V1
  • Switching Function: Normally open (NO)

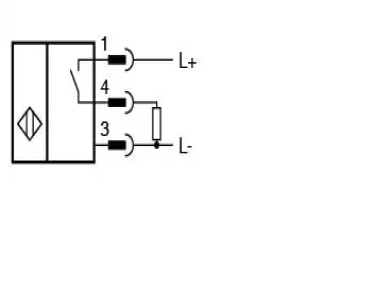

  • Output Type: PNP, 3-wire DC output
  • Rated Operating Distance: 4 mm sensing range
  • Assured Operating Distance: 0 to 3.24 mm
  • Installation Type: Flush mounting
  • Actuating Element: Mild steel target (12 mm × 12 mm × 1 mm reference)

Electrical Specifications

  • Operating Voltage: 6 – 36 V DC
  • Switching Frequency: Up to 2550 Hz
  • Operating Current: 0 – 200 mA
  • Off-state Current: Maximum 20 µA
  • No-load Supply Current: ≤ 10 mA
  • Voltage Drop: ≤ 1 V
  • Reverse Polarity Protection: Yes
  • Short-Circuit Protection: Pulsing protection

Performance Characteristics

  • Hysteresis: Approximately 5%
  • Start-up Delay: ≤ 10 ms
  • Switching Status Indicator: Yellow LED

Environmental Conditions

  • Ambient Temperature Range: −40 °C to +85 °C
  • Storage Temperature Range: −40 °C to +85 °C

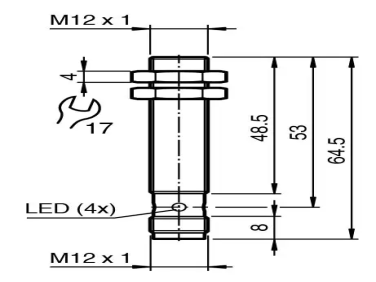

Mechanical Specifications

  • Housing Material: Brass with white bronze coating
  • Sensing Face Material: PBT (green)
  • Protection Degree: IP65 / IP66 / IP67 / IP68

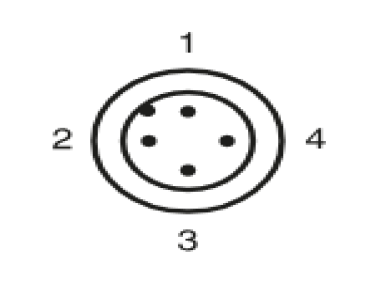

  • Connector Type: M12 × 1 connector plug
  • Number of Pins: 3
  • Sensor Diameter: 12 mm
  • Length: 64.5 mm
  • Weight: Approximately 29 g
  • Mounting: M12 threaded mounting with supplied nuts
  • Tightening Torque: ≤ 10 Nm

Compliance and Certifications

  • Standard Compliance: EN IEC 60947-5-2
  • Protection Class: II
  • UL Approval: cULus Listed (Class 2 power source)

Marine Approval: DNVGL certified
