NG # 2259-HW-PEP-011

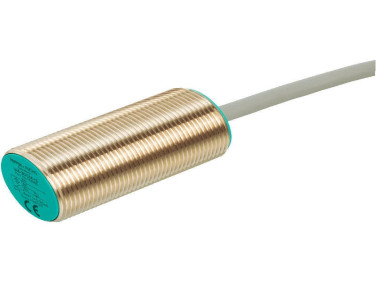

Pepperl+Fuchs is widely recognized for pioneering the first commercial inductive proximity switch. Today, their inductive proximity sensor lineup ranges from standard M8 barrel switches to high-durability, industry-specific sensor platforms
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteInductive analog output sensors are used to detect metal objects within specific operating ranges. This object distance is then translated into an analog output signal proportional to distance, making these sensors ideally suited for measuring and controlling applications. The Pepperl+Fuchs product offering includes operational detection ranges from 2 … 5 mm, 3 ... 8 mm, and 15 ... 40 mm. Due to the low-temperature deviation of our inductive analog sensor product, only 1/1000 of the final value per degree Celsius, the sensor remains reliable and accurate even under non-constant ambient conditions.
| Parameter | Technical Specification Range |
| Housing Sizes / Styles | M8, M12, M18, M30 barrels; flat-pack block; limit-switch cube (VariKont) |
| Rated Operating Distance ($s_n$) | 1.5 mm to 50 mm (depends on housing size and mounting style) |
| Installation Type | Flush (embeddable) or Non-flush (non-embeddable) |
| Operating Voltage ($U_B$) | 10 – 30 V DC (3/4-wire), 8.2 V DC (NAMUR), or 20 – 250 V AC/DC |
| Output Logic | PNP, NPN, 2-Wire DC, 2-Wire AC/DC, NAMUR (Ex zones), IO-Link |
| Switching Function | Normally Open (NO), Normally Closed (NC), or Complementary (NO+NC) |
| Switching Frequency ($f$) | Up to 5 kHz (small DC barrels) down to 25 Hz (AC models) |
| Housing Materials | Nickel-plated brass, Stainless steel (1.4305 / 1.4404), PBT plastic |
| Ambient Operating Temperature | -25 °C to +70 °C (-13 °F to +158 °F); low/high temp variants (-40 °C to +100 °C) |
| Protection Degree | IP67 / IP68 / IP69K |
| Connection Types | M8 / M12 quick-disconnect connector, potted cable, or terminal chamber |
