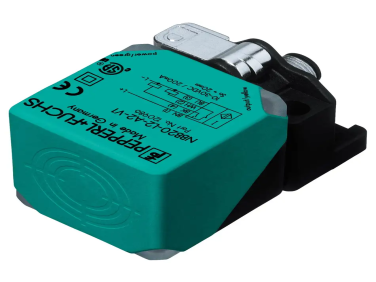

Pepperl+Fuchs Inductive sensor NBN40-L2-A2-V1

  • NG # 04155-HW-PEP-038

  • MF # NBN40-L2-A2-V1

The Pepperl+Fuchs 9931 (NBN40-L2-A2-V1) is a non-flush inductive proximity sensor with a 40 mm sensing distance and PNP output. It features a bidirectional rotatable sensing head for flexible mounting and complementary switching output for precise metal detection in industrial automation systems. The device operates on 10–30 V DC and uses a 4-pin M12 connector for reliable integration with control systems.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pepperl+Fuchs 9931 (NBN40-L2-A2-V1) is an industrial inductive proximity sensor designed for reliable non-contact detection of metallic objects in automation and process control systems. The sensor features a bidirectional and rotatable sensing head that allows flexible installation and easy alignment in complex industrial environments.

This model supports a long sensing distance of up to 40 mm and utilizes a PNP output with complementary switching functions. It operates on a standard 10–30 V DC supply and includes a robust M12 connector for quick and secure electrical connections.

Designed for demanding industrial applications, the sensor provides stable detection performance, fast switching capability, and compatibility with various automation systems used in manufacturing, material handling, and machine automation. Its durable design ensures reliable operation even in harsh environments where accurate object detection is critical for process efficiency and safety.

Specification

·  Manufacturer: Pepperl+Fuchs

·  Model / Part Number: 9931 (NBN40-L2-A2-V1)

·  Sensor Type: Inductive proximity sensor

·  Sensing Technology: Non-contact metal detection

·  Sensing Distance: 40 mm

·  Installation Type: Non-flush mounting

·  Output Type: PNP

·  Switching Function: Complementary switching output

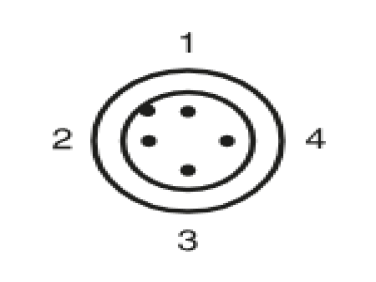

·  Electrical Connection: M12 × 1 connector, 4-pin

·  Operating Voltage: 10 – 30 V DC

·  Switching Frequency: 0 – 180 Hz

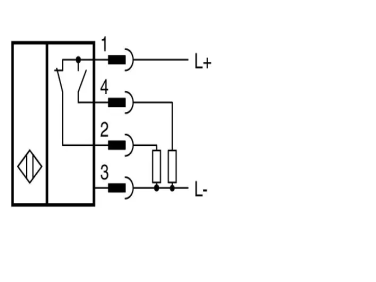

·  Wiring Type: 4-wire configuration

·  Sensor Head Design: Bidirectional and rotatable sensing head

·  Application: Industrial automation, object detection, machine control systems
