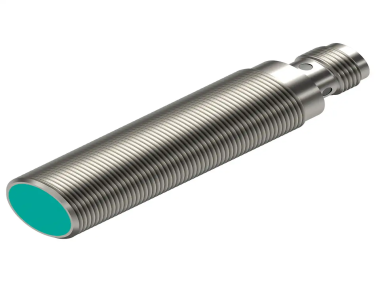

Pepperl+Fuchs Inductive sensor NBB8-18GM60-A2-V1

  • NG # 04169-HW-PEP-051

  • MF # NBB8-18GM60-A2-V1

The NBB8‑18GM60‑A2‑V1 is an inductive proximity sensor designed for industrial automation. It features an 8 mm flush sensing range, high switching frequency, extended temperature and operating voltage range, and a four‑wire PNP output. It is suitable for versatile mounting applications in harsh environments and complies with relevant industrial standards.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NBB8‑18GM60‑A2‑V1 inductive sensor detects metallic targets without contact. It has a robust design suitable for industrial use with durable housing and reliable electrical performance. The sensor supports extended ambient conditions and includes necessary protections such as reverse polarity and short‑circuit protection. It is widely applicable in machine automation where non‑contact metal detection is required.

Specification

General Specifications

  • Sensing type: Inductive proximity sensor
  • Rated operating distance: 8 mm
  • Installation: Flush

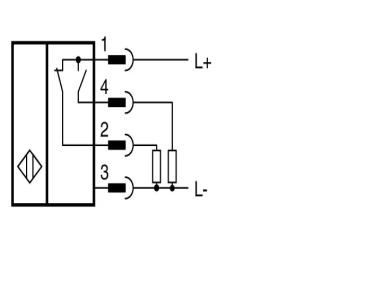

  • Output type: PNP, 4‑wire
  • Output polarity: DC
  • Switching function: Complementary

Electrical Specifications

  • Operating voltage: 6 … 36 V DC
  • Switching frequency: up to 1350 Hz
  • Operating current: up to 200 mA
  • Voltage drop: ≤ 1 V
  • No‑load supply current: ≤ 15 mA
  • Reverse polarity protection: Yes
  • Short‑circuit protection: Pulsing

Mechanical and Physical

  • Housing material: Brass with white bronze coating
  • Sensing face material: PBT
  • Degree of protection: IP65 / IP66 / IP67 / IP68
  • Connector: M12 x 1 with 4 pins

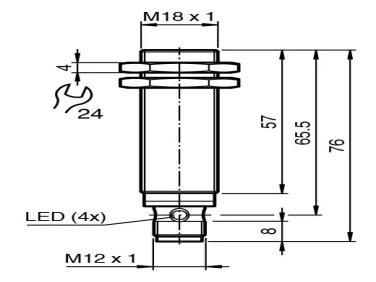

  • Sensor dimensions: 76 mm length, 18 mm diameter
  • Mounting: with included nuts
  • Mass: 68 g

Performance and Conformity

  • Standards compliance: EN IEC 60947‑5‑2
  • Protection class: II
  • Approvals: cULus Listed

Environmental Conditions

  • Ambient temperature: -40 … 85 °C
  • Storage temperature: -40 … 85 °C
